- Brand: REEDMORAL
- SKU: LDH108D
- Product Type: Carburetor assembly
- Application: Volkswagen Type 1, Type 2, Thing and Karmann Ghia performance applications
- Reference Numbers: 113129031K-37, 113-129-031K-37AL

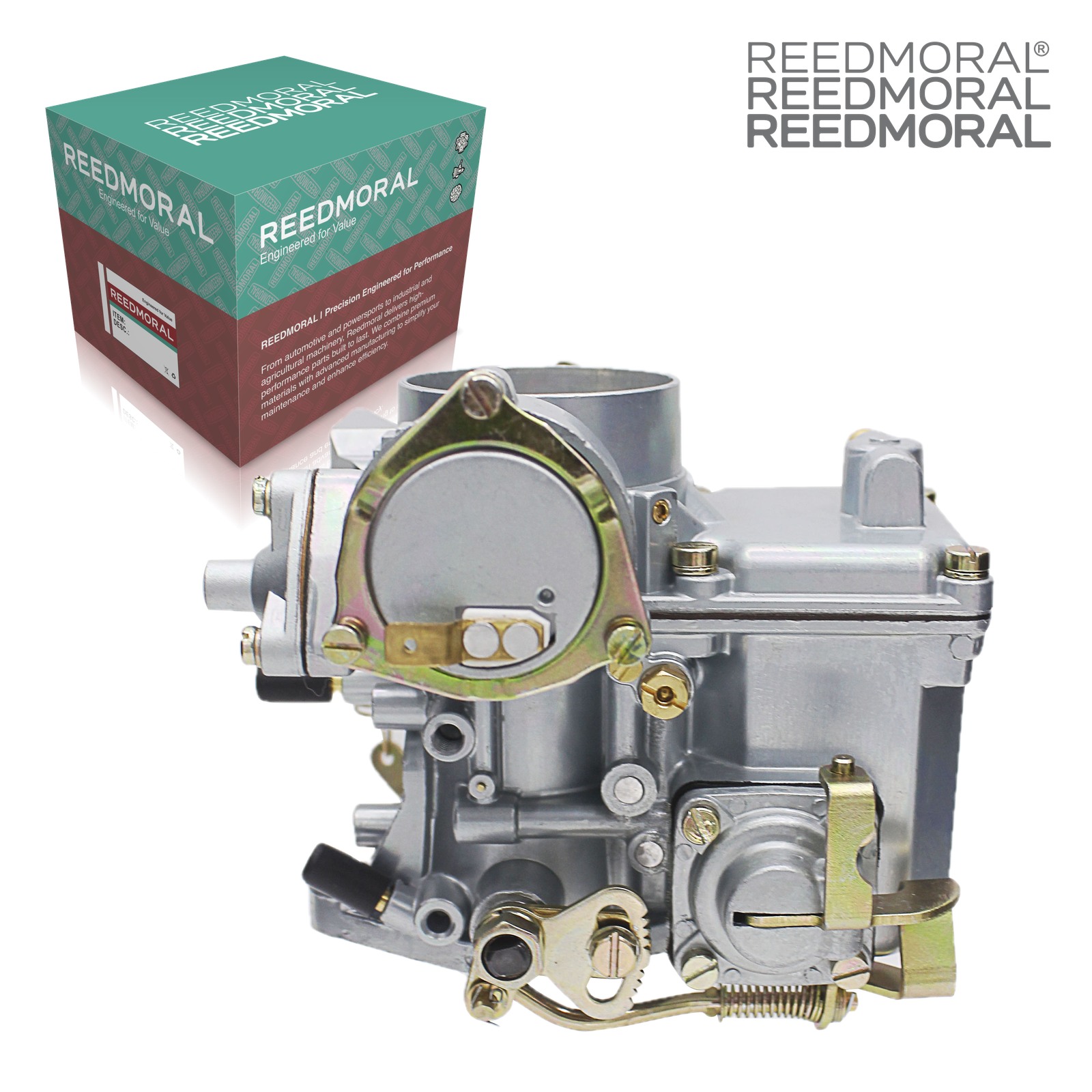

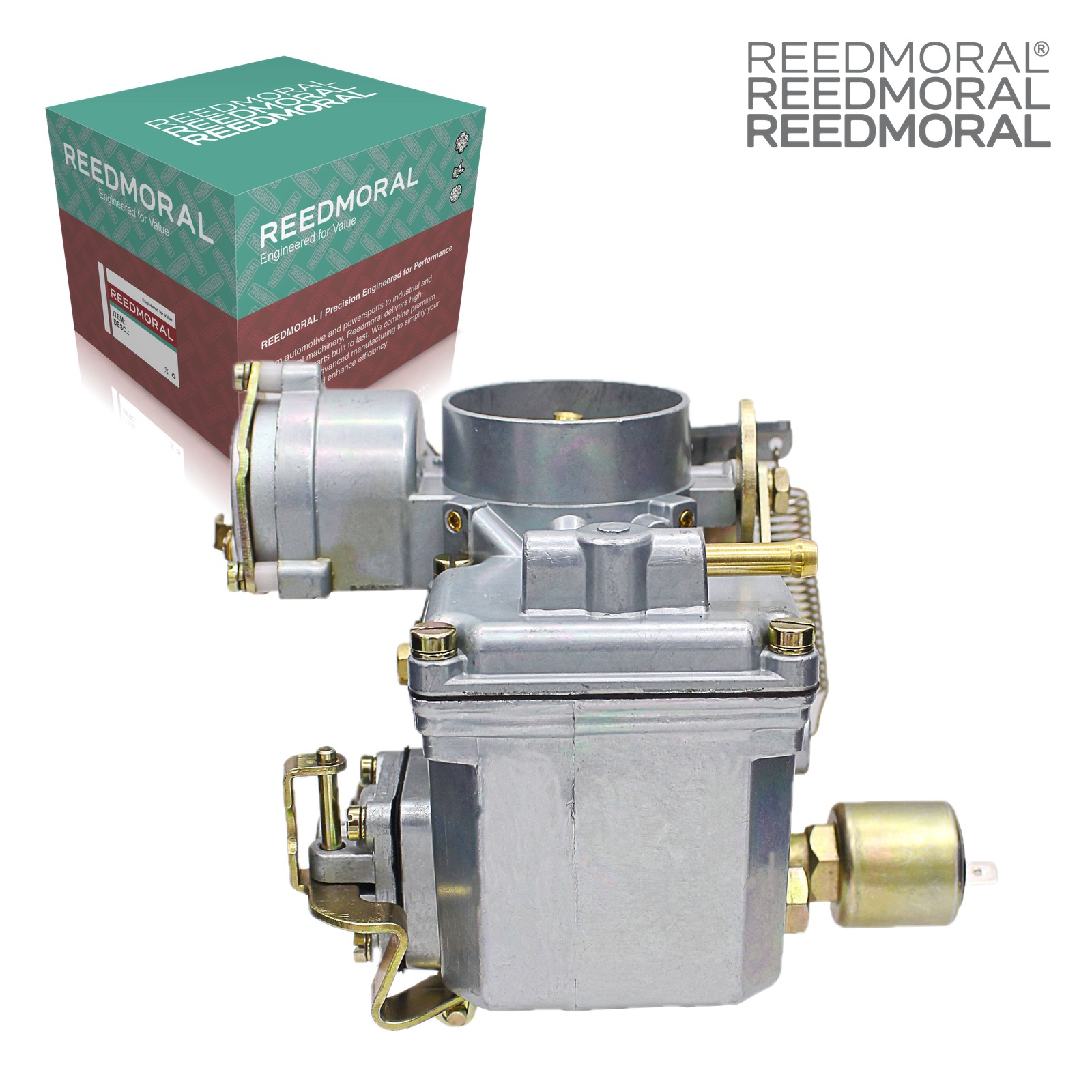

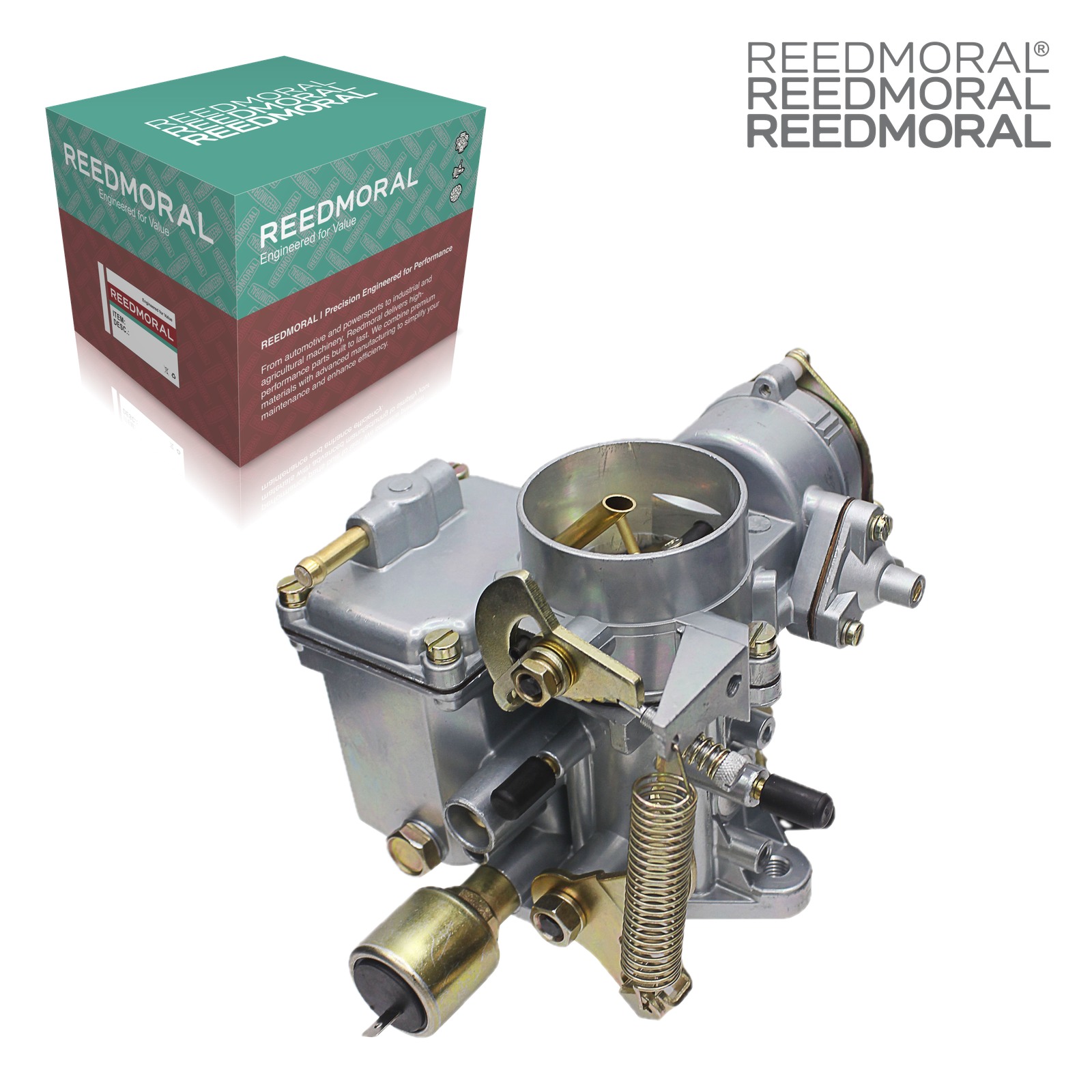

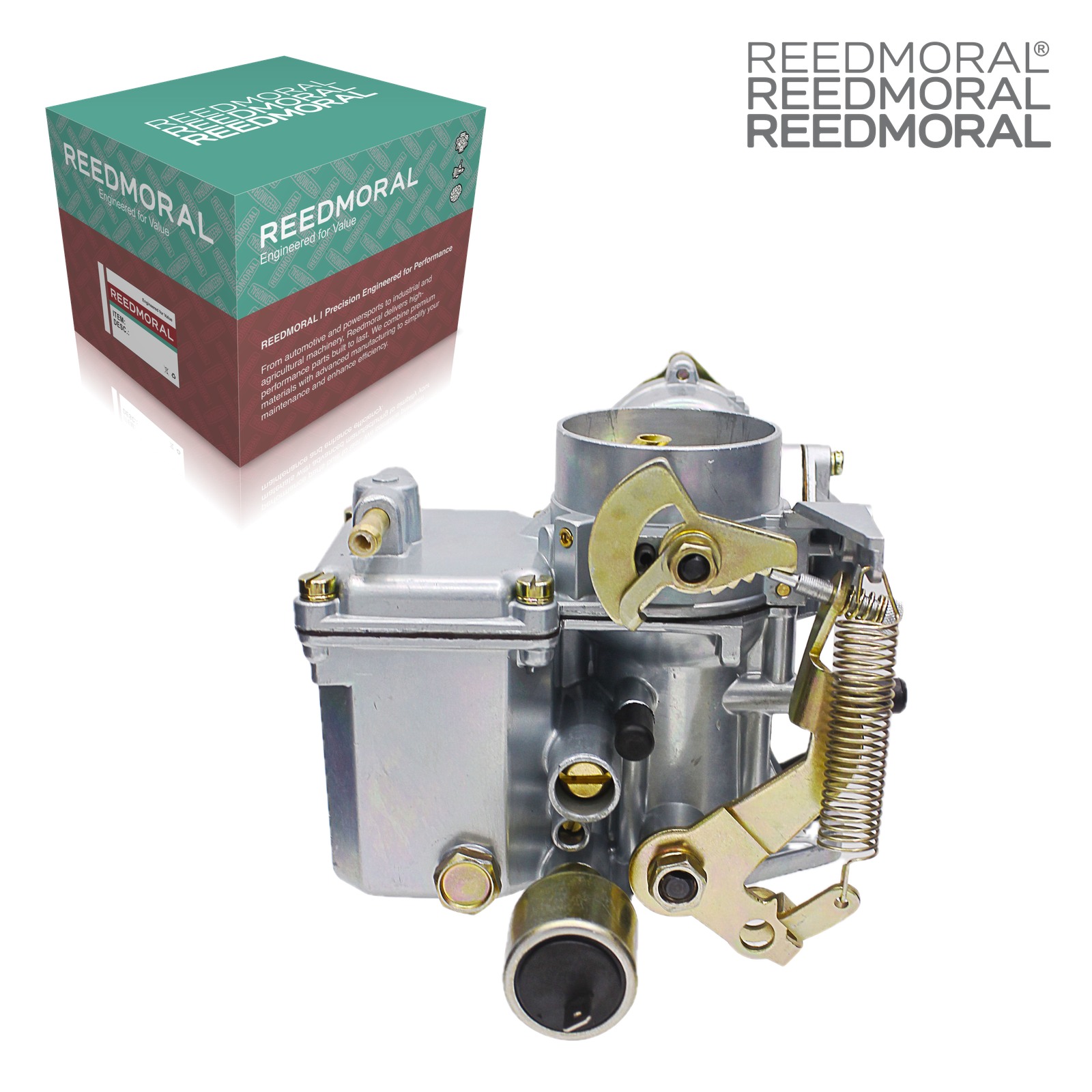

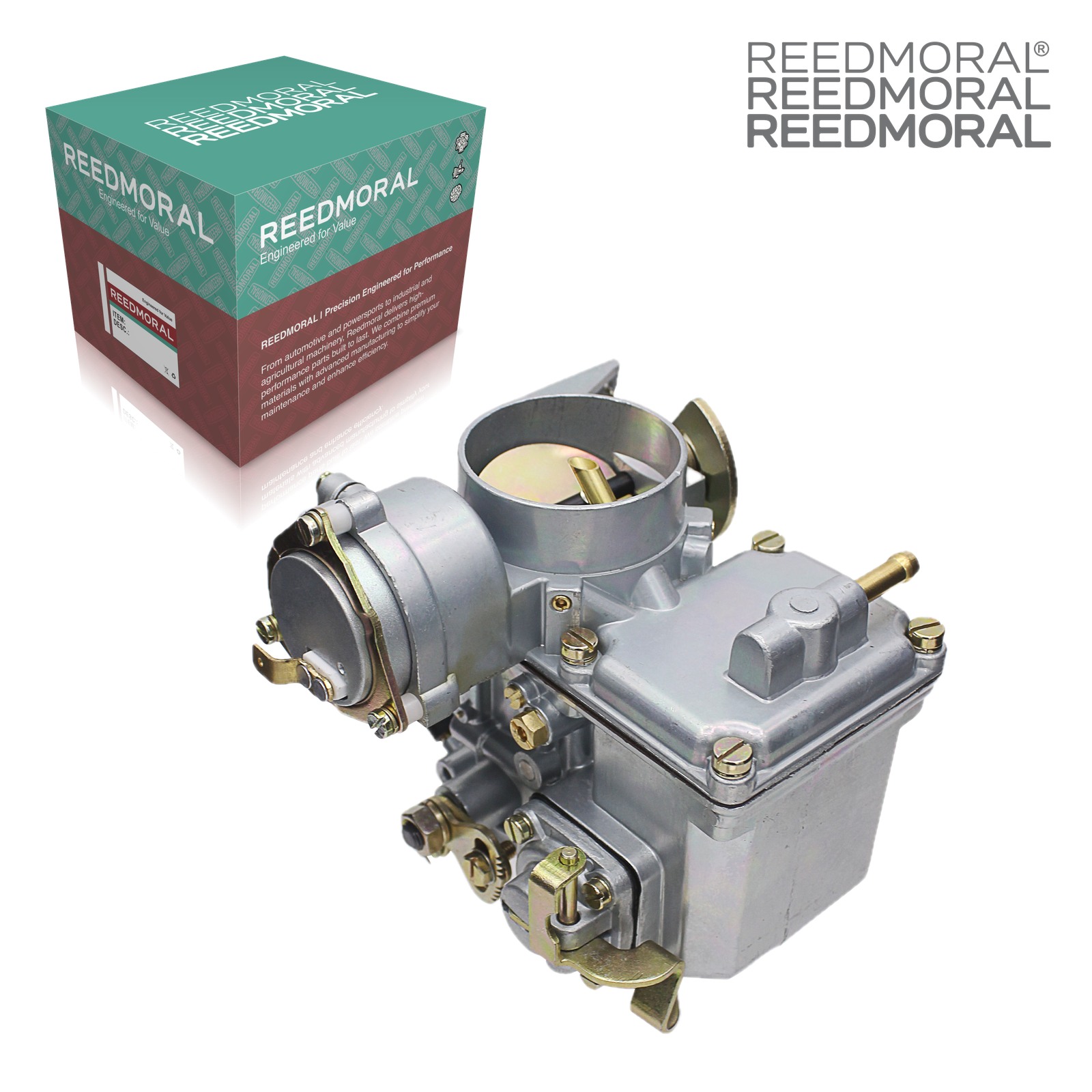

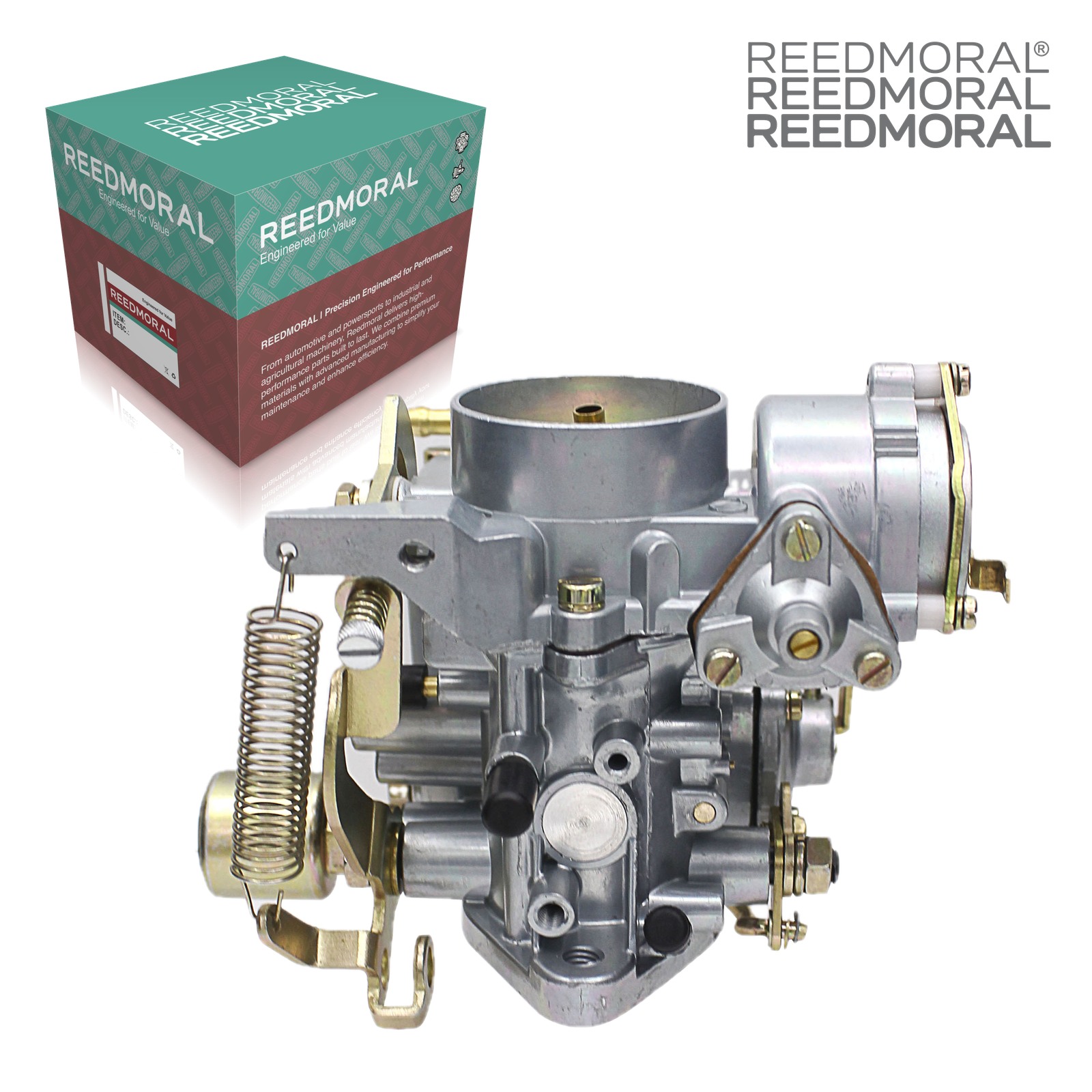

LDH108D REEDMORAL 37 PICT-3 Performance Carburetor for Air-Cooled VW 1600cc
Description
Product Overview
The LDH108D is a brand-new REEDMORAL carburetor assembly, newly manufactured rather than rebuilt or remanufactured.
- Application: Volkswagen Type 1, Type 2, Thing and Karmann Ghia performance applications
- Reference Numbers: 113129031K-37, 113-129-031K-37AL
- Configuration: 37 PICT-3 performance version with 12-volt electric choke for dual-port 1600 cc engines
Application and Fitment Guide
A current carburetor-manufacturer catalog identifies the 37 PICT-3 as a performance replacement for dual-port 1600 cc air-cooled engines and publishes 113-129-031K-37AL as its reference. It is not the same calibration as the standard 34 mm version.
| Make / Model | Year / Period | Engine | Required Check |
|---|---|---|---|
| Volkswagen Type 1 / Super Beetle | 1971-1979 manufacturer catalog range | 1600 cc dual-port air-cooled | Confirm 12 V system, dual-port manifold and distributor compatibility |
| Volkswagen Type 2 | Application-specific | 1600 cc dual-port air-cooled | Compare mounting, clearance, jetting and external connections |
| Volkswagen Type 181 Thing / Karmann Ghia | Application-specific | 1600 cc dual-port air-cooled | Performance replacement; final calibration must suit the engine |
How to Confirm Fitment
- Match the complete reference number and carburetor marking.
- Confirm the vehicle market, year, engine and electrical system.
- Compare bore size, mounting flange, choke, idle valve, vacuum ports and linkage.
- For 37 mm and 39 mm performance versions, confirm jetting and distributor compatibility.
Important Notes
Regional specifications, emissions equipment and production changes can alter calibration and external connections. Professional installation and final adjustment are recommended.
Factory Calibration Specifications
Factory-recorded baseline values. Final tuning may vary with the complete engine and vehicle setup.
| Carburetor Type | 37 PICT |
|---|---|
| Emulsion Tube | — |
| Pump Jet | 60 |
| Needle Valve | 2 |
| Idle Jet | 55 |
| Main Jet | 132 |
| Main Air Jet | 70 |
| Venturi | 28 |
| Auxiliary Venturi | — |
Additional information
| Weight | 2.8 kg |
|---|---|
| Dimensions | 28 × 25 × 19 cm |
| Reference | 113 129 031K-37 |
