- Brand: REEDMORAL
- SKU: LDH8004
- Product Type: Carburetor Assembly
- Application: Yamaha G1-AM5 gasoline golf car applications catalogued with carburetor assembly J24-14101-00; confirm the complete model code, two-cycle engine configuration, oil-injection plumbing, linkage and flange before ordering.; CARBURETOR (golf cart use) FITS/REPL. Yamaha '83-'89 G1 Golf Carts / Karts w/ 2 Cycle Engines J24-14101-00 / J24-14101-01
- Reference Numbers: LDH8004

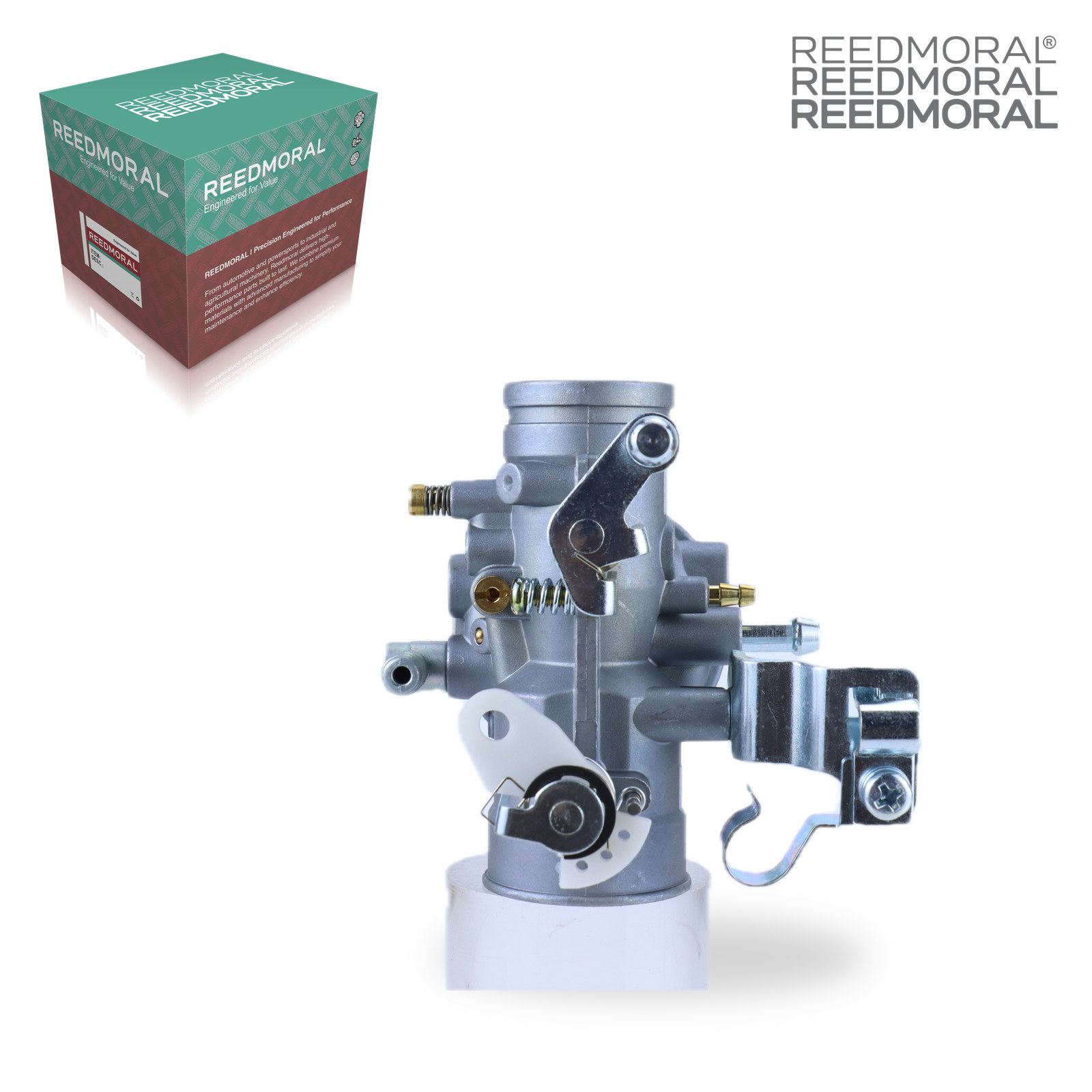

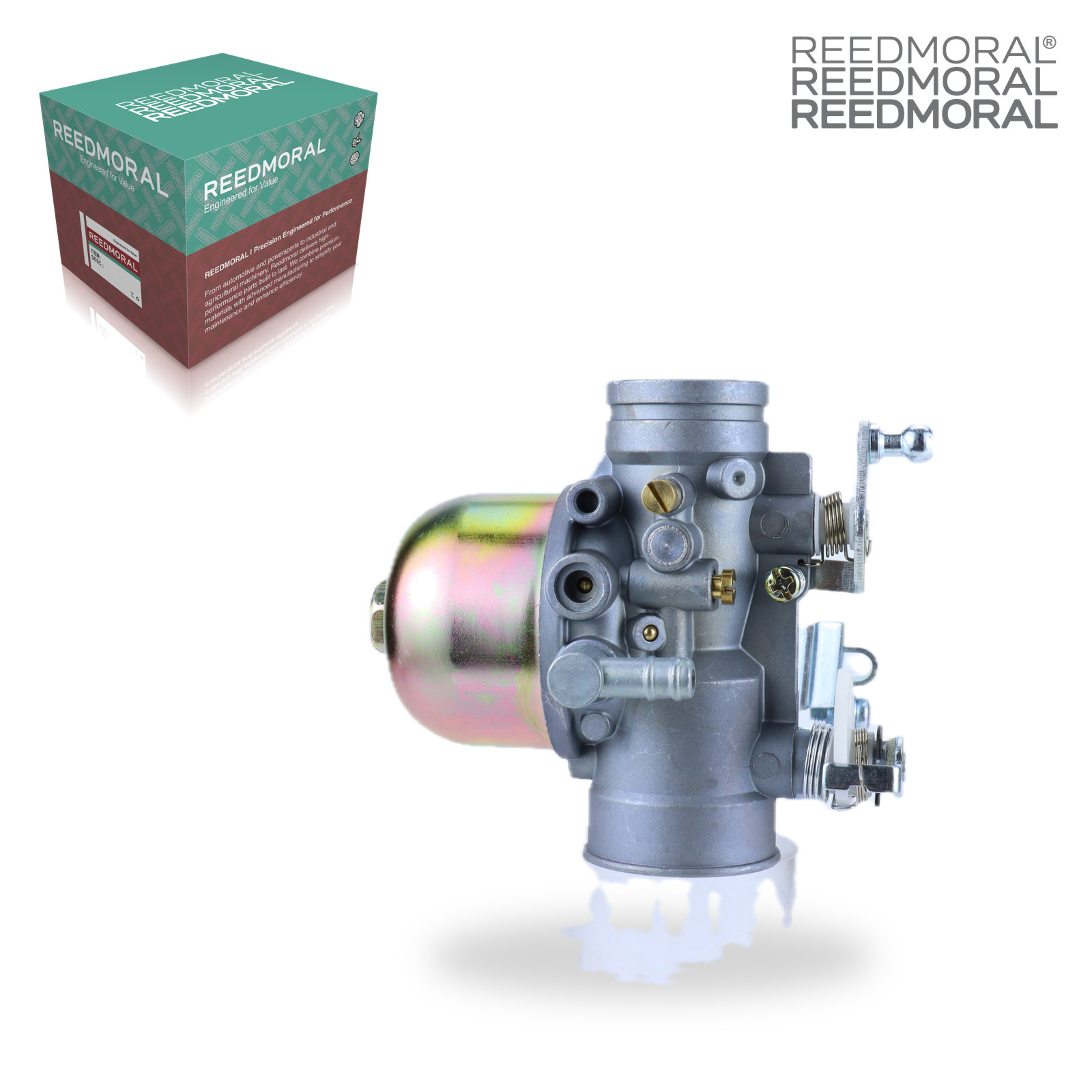

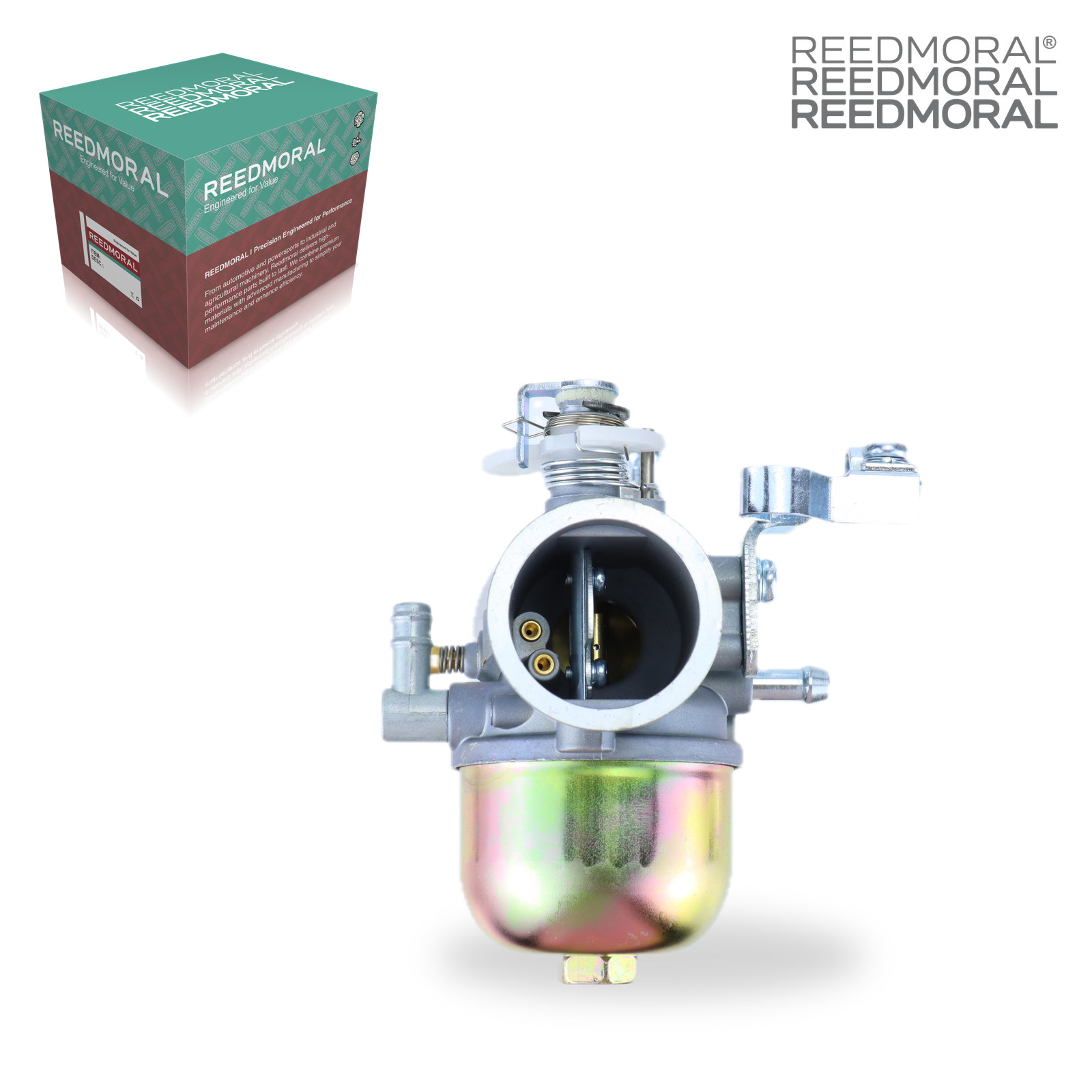

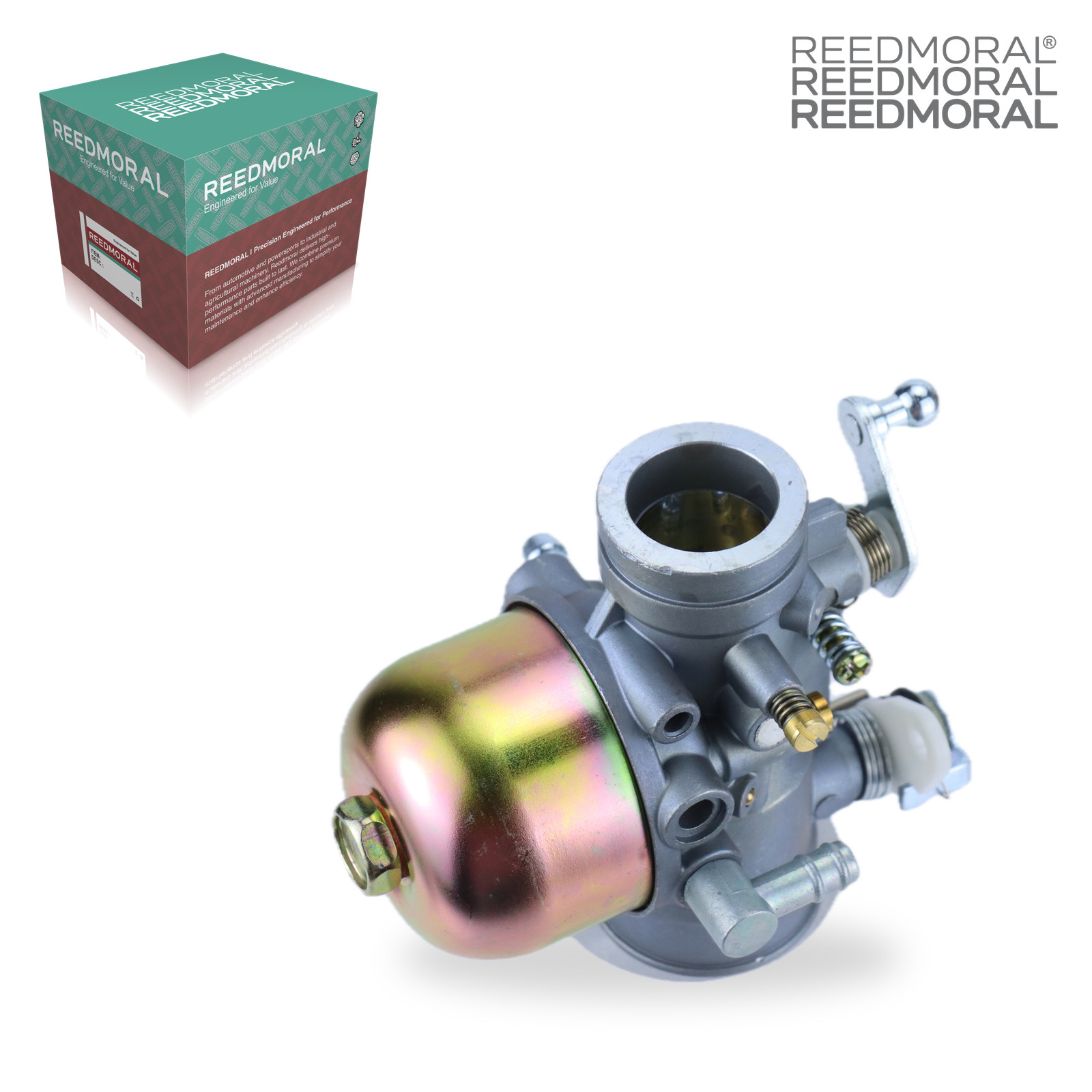

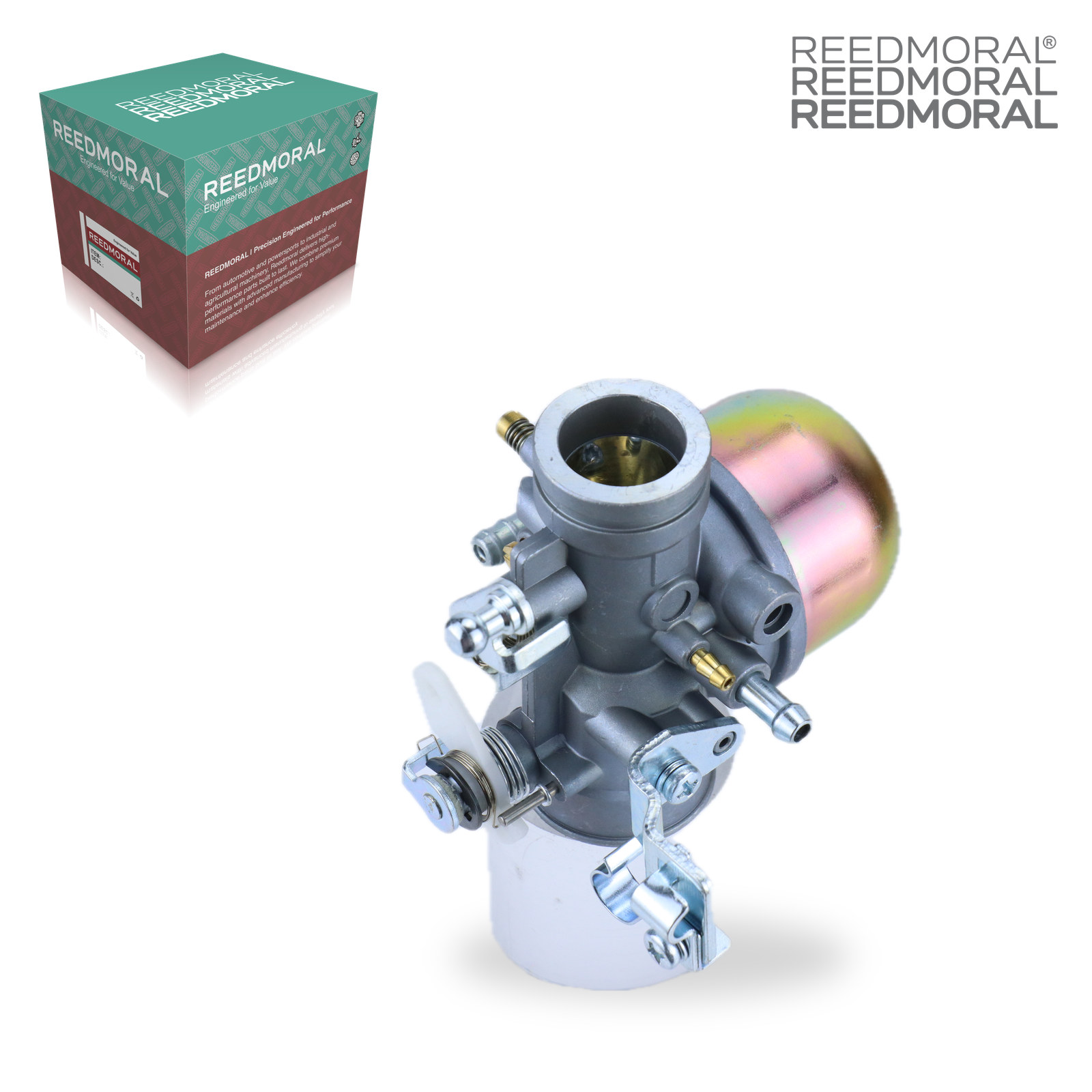

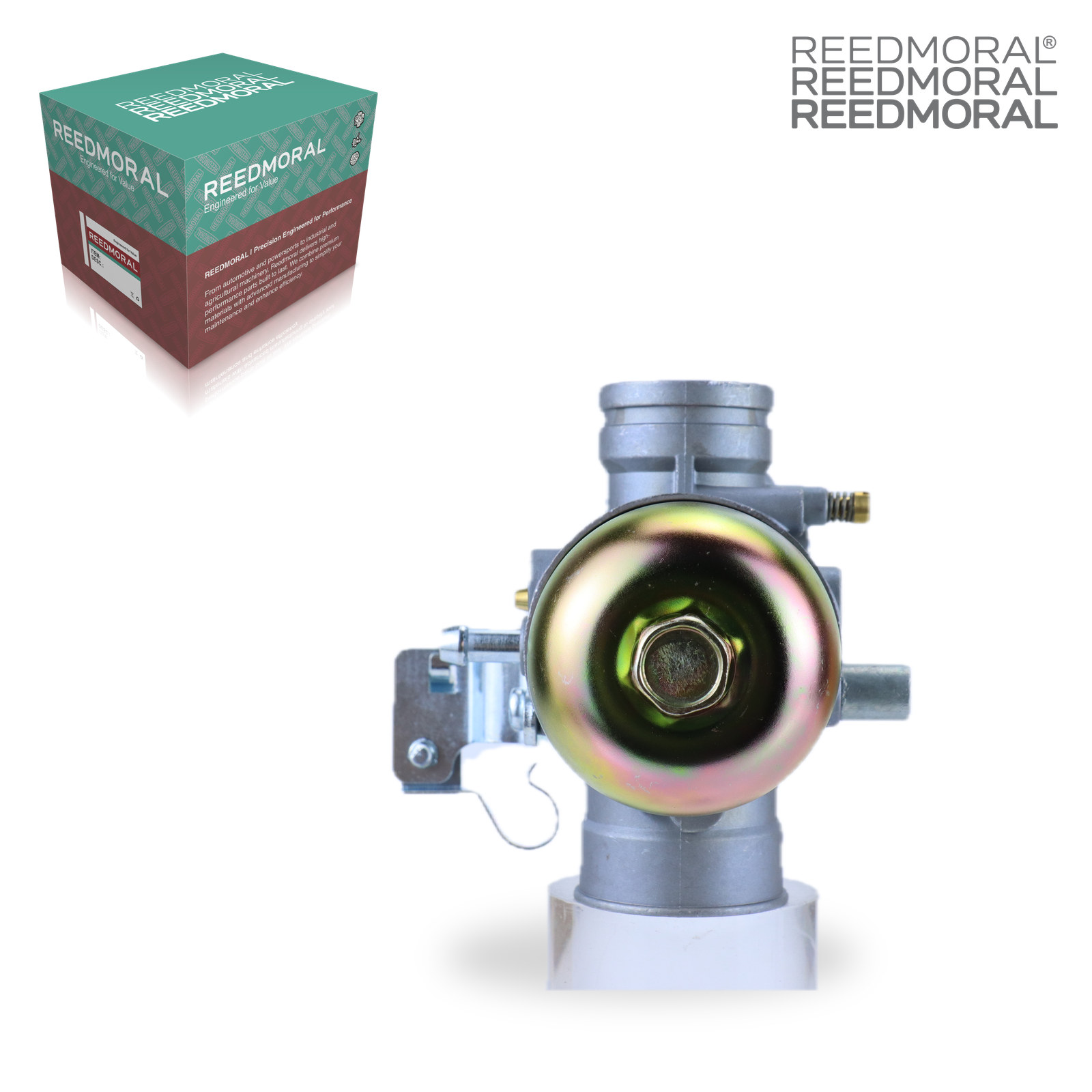

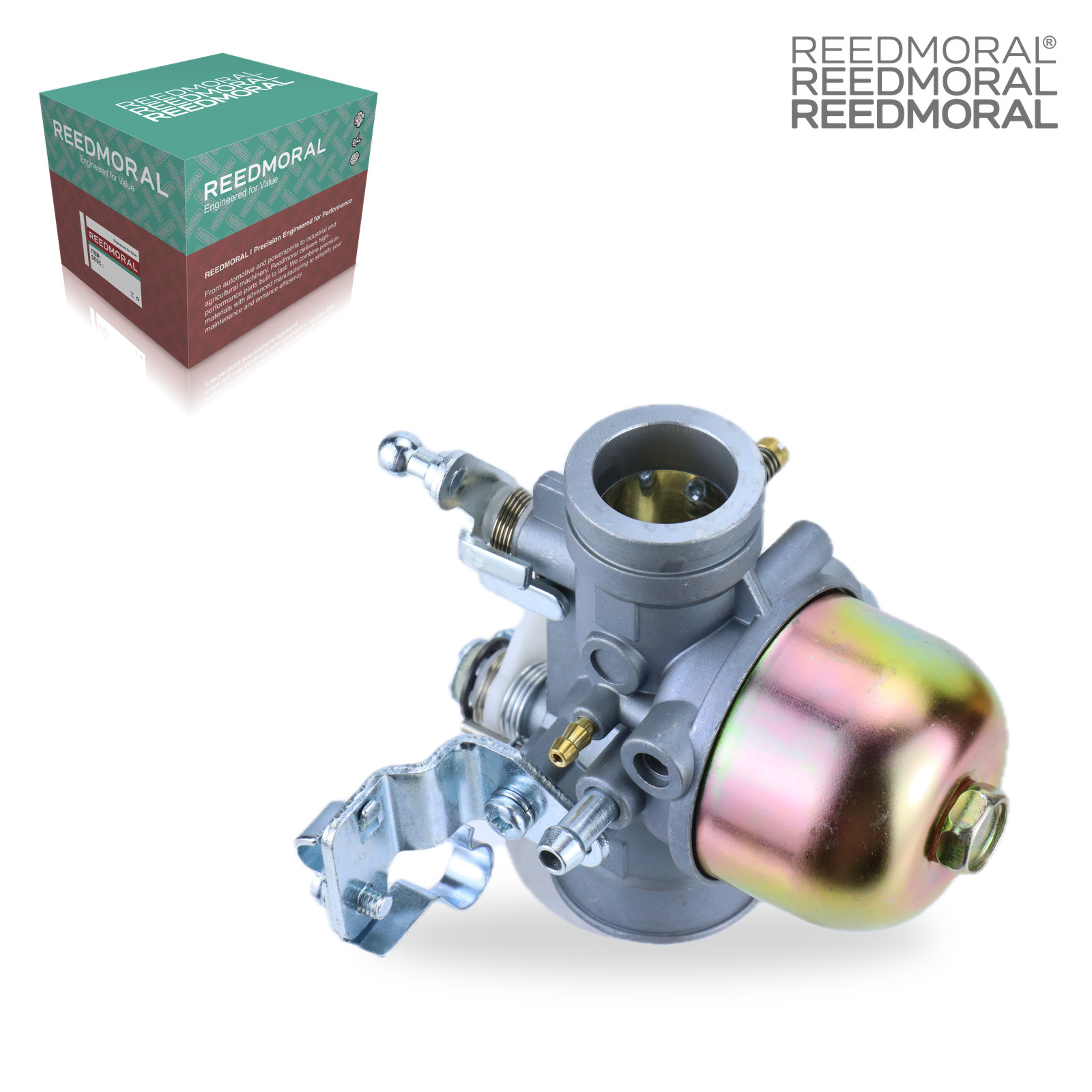

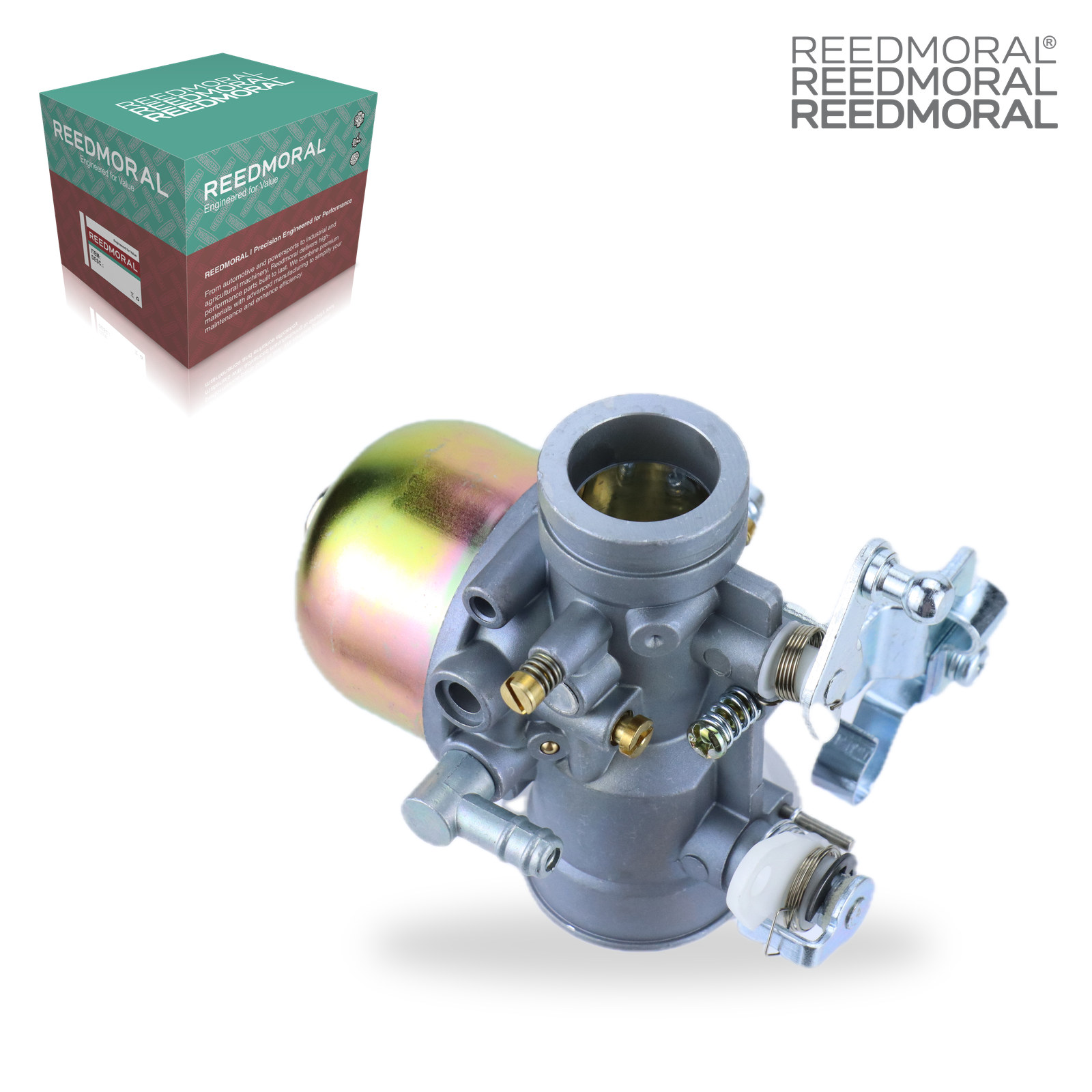

LDH8004 REEDMORAL Carburetor LDH8004 for Yamaha G1-AM5 J24-14101-00
Description
Product Overview
The LDH8004 is a brand-new REEDMORAL carburetor assembly manufactured as a new replacement component. It is not used, rebuilt, remanufactured, OEM-branded or represented as a vehicle-maker original part.
Key Specifications / Configuration
- Brand: REEDMORAL
- SKU: LDH8004
- Product type: Carburetor Assembly
- Condition: Brand new
- Application evidence: Yamaha G1-AM5 gasoline golf car applications catalogued with carburetor assembly J24-14101-00; confirm the complete model code, two-cycle engine configuration, oil-injection plumbing, linkage and flange before ordering.; CARBURETOR (golf cart use) FITS/REPL. Yamaha '83-'89 G1 Golf Carts / Karts w/ 2 Cycle Engines J24-14101-00 / J24-14101-01
- Reference baseline: LDH8004
OEM & Identification Numbers
Locked confirmed reference set used for this listing: LDH8004
Common search forms: LDH8004
Possible / Candidate OEM and Identification References
- J24-14101-00 — possible/candidate OEM or interchange reference; supported by 2 retained catalogue pages (source 1, source 2). Confirm the complete number, VIN, connector/ports and mounting geometry before ordering.
Special notice: candidate numbers are search and pre-fitment clues only. They are displayed separately from the confirmed reference baseline, must be checked against the full number, VIN and physical configuration, and are not written back into the locked Jiandaoyun reference fields.
Application and Year Fitment Guide
Yamaha G1-AM5 gasoline golf car applications catalogued with carburetor assembly J24-14101-00; confirm the complete model code, two-cycle engine configuration, oil-injection plumbing, linkage and flange before ordering.; CARBURETOR (golf cart use) FITS/REPL. Yamaha '83-'89 G1 Golf Carts / Karts w/ 2 Cycle Engines J24-14101-00 / J24-14101-01
| Make / Model / Application | Years | Engine / Configuration | Fitment Check |
|---|---|---|---|
| Yamaha G1-AM5 gasoline golf car applications catalogued with carburetor assembly J24-14101-00 | Verify by complete reference and production date | Configuration-specific; confirm engine code and original unit | Match the complete reference, market/VIN, connector or linkage, ports and mounting geometry. |
| confirm the complete model code, two-cycle engine configuration, oil-injection plumbing, linkage and flange before ordering. | Verify by complete reference and production date | cycle engine | Match the complete reference, market/VIN, connector or linkage, ports and mounting geometry. |
| CARBURETOR (golf cart use) FITS/REPL. Yamaha '83-'89 G1 Golf Carts / Karts w/ 2 Cycle Engines J24-14101-00 / J24-14101-01 | Verify by complete reference and production date | Configuration-specific; confirm engine code and original unit | Match the complete reference, market/VIN, connector or linkage, ports and mounting geometry. |
Physical Identification Checklist
- Mounting flange and stud/bolt spacing
- Throttle linkage, return spring and choke configuration
- Fuel inlet location, vacuum ports and bowl/cover orientation
- Venturi/bore count and external casting shape
Installation and Ordering Notes
Confirm the complete reference character by character and compare all gallery views before ordering. Fitment can vary by market, VIN, engine code, production date and physical configuration. Professional installation is recommended. Electronic throttle bodies may require the vehicle-maker’s relearn procedure; cable-drive units require throttle-cable travel, blade-clearance and TPS/IAC calibration checks.
Package Contents
One REEDMORAL replacement component as photographed.
Catalogue Research and Confidence Boundary
- Yamaha G1-AM5 parts catalogue: J24-14101-00 Carburetor Assy 1 (manufacturer catalogue)
- Yamaha G1 service manual specification: carburetor J24-14101-00 (technical manual)
Catalogue evidence supports the stated application family and identification numbers, but production date, market, engine variant, calibration and external linkage may differ. Confirm the complete number and physical configuration before ordering.
Additional information
| Reference | LDH8004 |
|---|---|
| Brand | REEDMORAL |
| Condition | Brand New |
