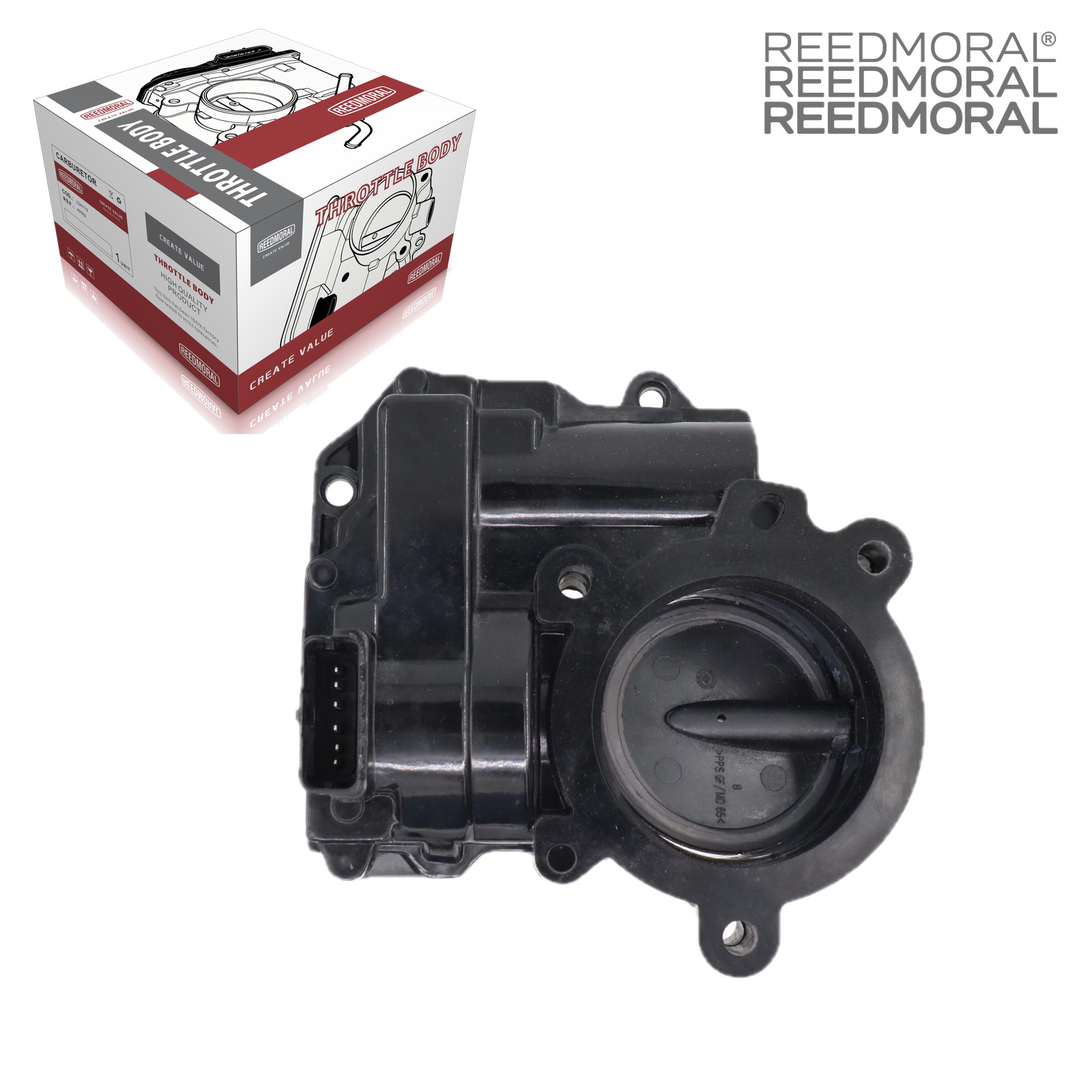

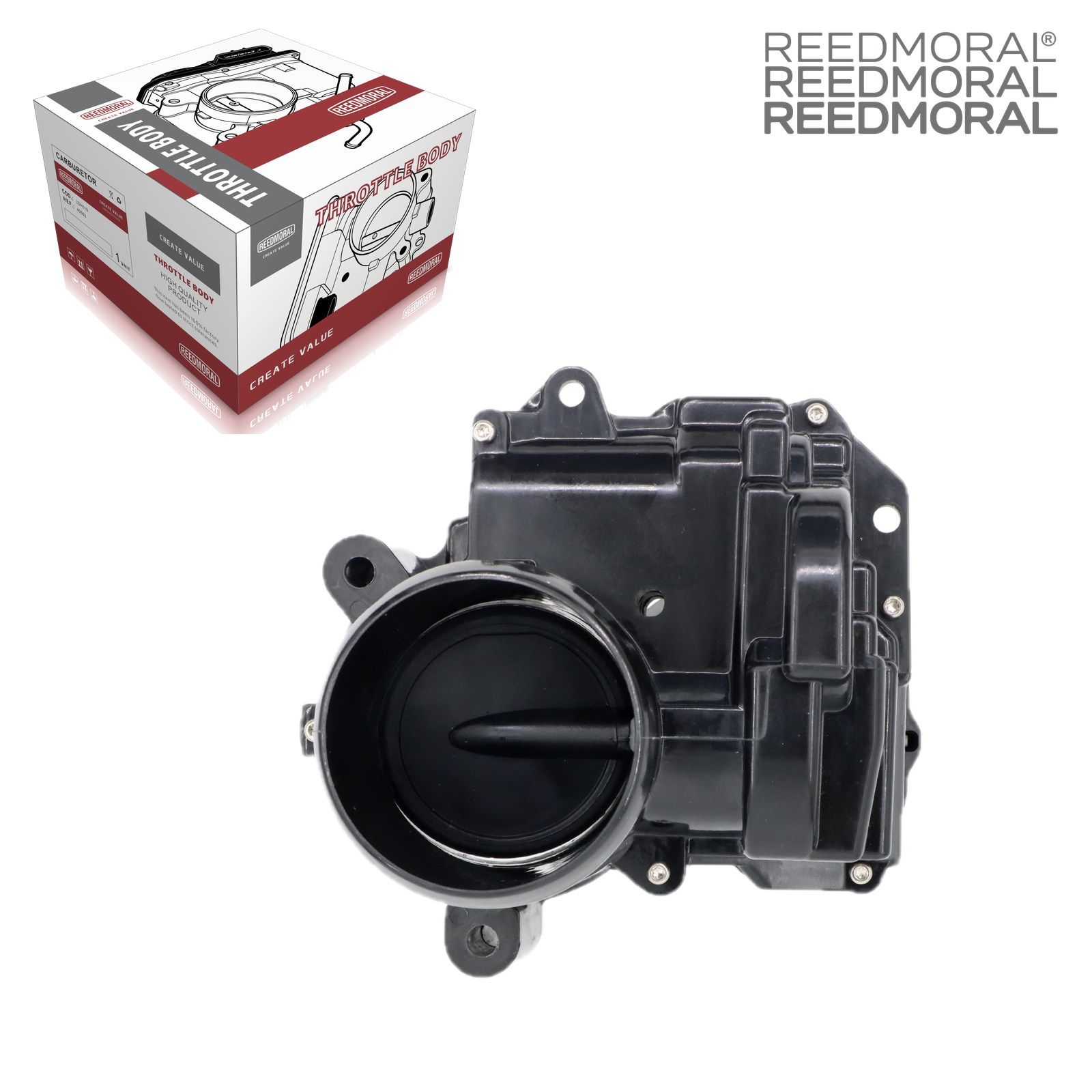

J1246 REEDMORAL Throttle Body Assembly 163631 163672 8624189

Product Overview

J1246 is a brand-new REEDMORAL throttle body assembly manufactured as a replacement component. It is not used, rebuilt, remanufactured, OEM-branded or represented as a vehicle-maker original part. Catalogue application context: Selected BMW / MINI and related PSA 1.6L turbo applications using the 13547528179 supersession family

Key Specifications / Configuration

• Brand: REEDMORAL
• SKU: J1246
• Product type: Throttle Body Assembly
• Condition: Brand new
• Reference baseline: 163631 163672 8624189 8675278 7528179 7574380 7576698 7604918 8605603 757669880 V862418980 V867527880 13547528179 13547574380 13548605603 13547576698 13547604918 13548624189 13548675278 40624-1148090; S20080 TB1120 V20-81-0019 A2C33099600 A2C39215900 A2C59513208
• Application evidence: Selected BMW / MINI and related PSA 1.6L turbo applications using the 13547528179 supersession family

OEM & Identification Numbers

Jiandaoyun locked primary reference: 163631 163672 8624189 8675278 7528179 7574380 7576698 7604918 8605603 757669880 V862418980 V867527880 13547528179 13547574380 13548605603 13547576698 13547604918 13548624189 13548675278 40624-1148090

Jiandaoyun locked secondary reference: S20080 TB1120 V20-81-0019 A2C33099600 A2C39215900 A2C59513208

Common search forms: 163631 163672 8624189 8675278 7528179 7574380 7576698 7604918 8605603 757669880 V862418980 V86752788, S20080 TB1120 V20-81-0019 A2C33099600 A2C39215900 A2C59513208, S20080TB1120V20810019A2C33099600A2C39215900A2C59513208

Possible / Candidate OEM Numbers — Verification Required

No new candidate OEM or interchange number was promoted in this pass. Numbers lacking an OEM-set or multi-source catalogue basis were excluded.

Special notice: candidate numbers, when present in future research, are search and pre-fitment clues only and must be checked against the full number, VIN or serial, engine, connector or linkage, ports, mounting pattern and overall appearance. They are never written into the locked Jiandaoyun primary or secondary reference fields.

Application and Year Fitment Guide

Selected BMW / MINI and related PSA 1.6L turbo applications using the 13547528179 supersession family

Physical Identification Checklist

• Electrical connector or cable-linkage configuration, pin count and keying
• Throttle bore, plate orientation and actuator or sensor housing position
• Mounting-hole pattern, flange outline and gasket face
• Coolant, vacuum or breather ports and hose-nipple direction

Installation and Ordering Notes

Confirm the complete reference character by character and compare every retained gallery view before ordering. Fitment can vary by market, VIN or serial number, engine code, production date and physical configuration. Professional installation is recommended. Electronic units may require the vehicle-maker's throttle adaptation or idle relearn; cable-drive units require cable travel, blade-clearance and TPS/IAC checks.

Package Contents

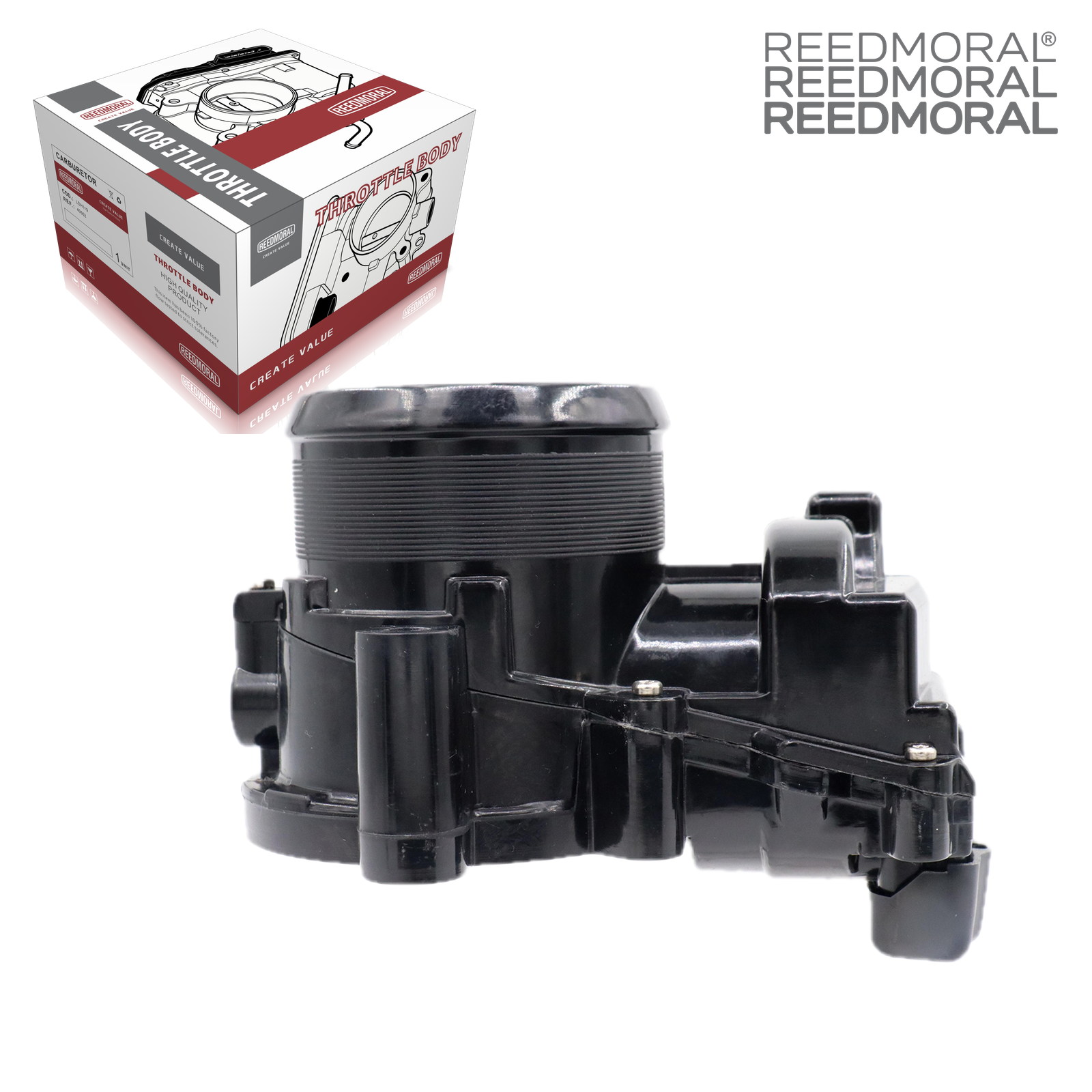

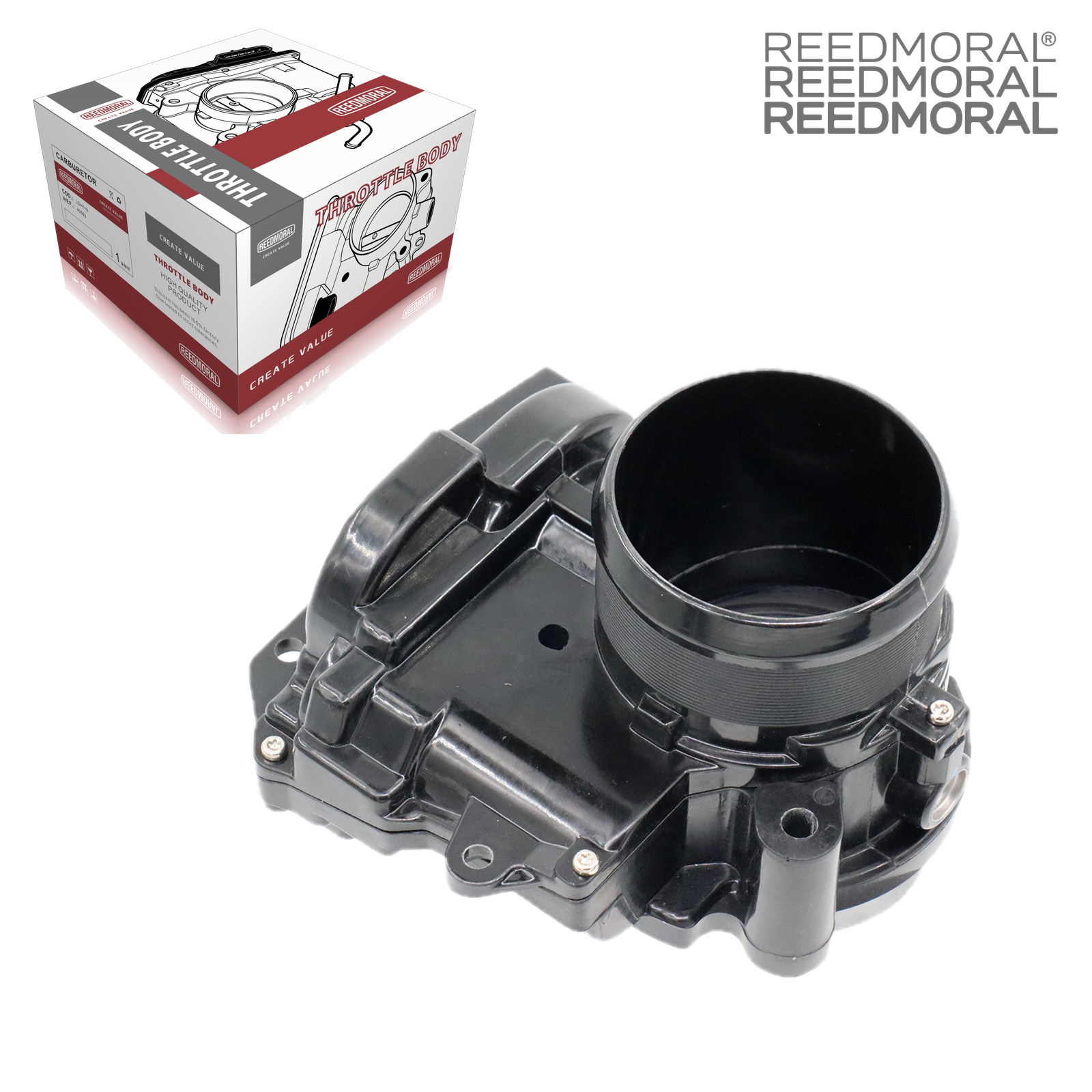

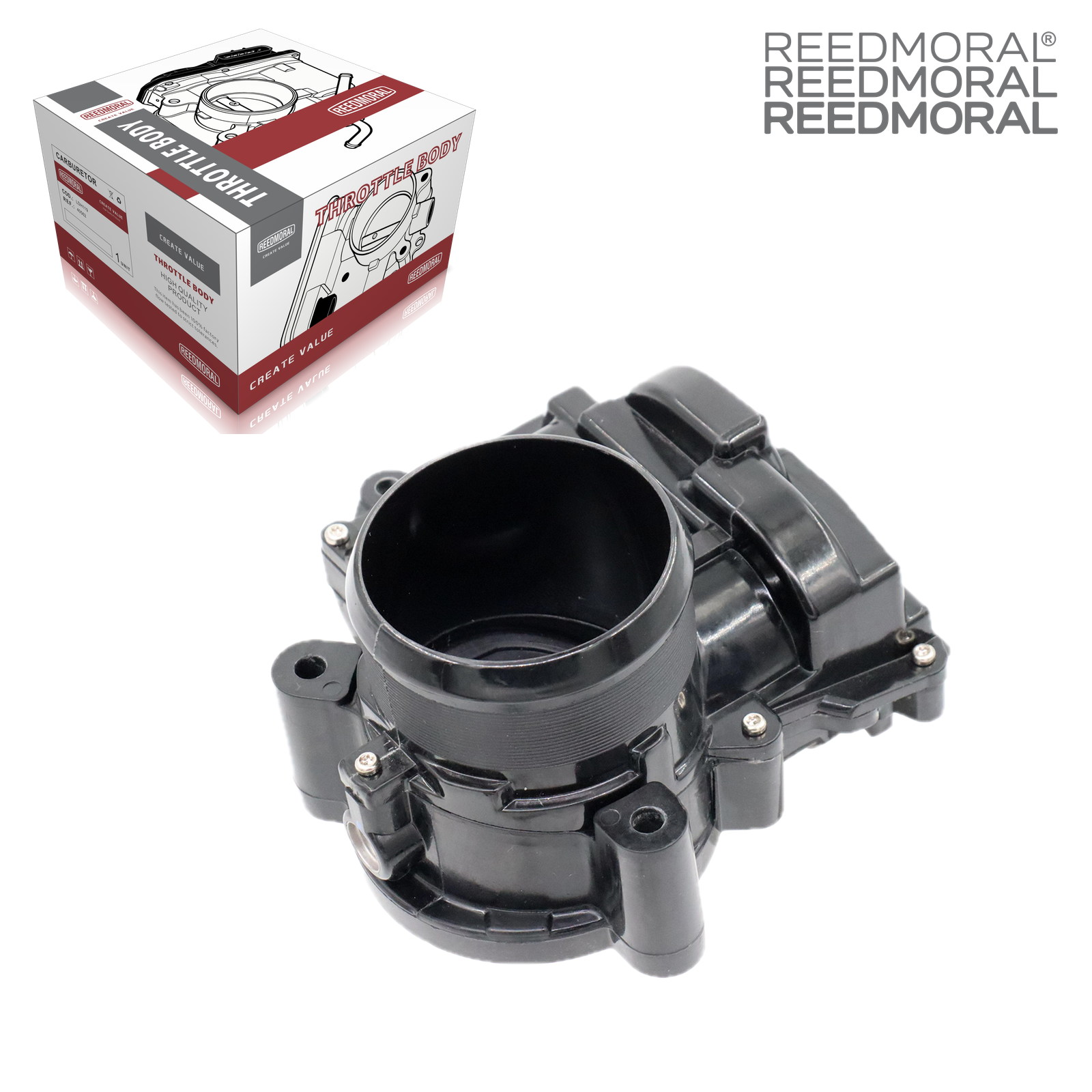

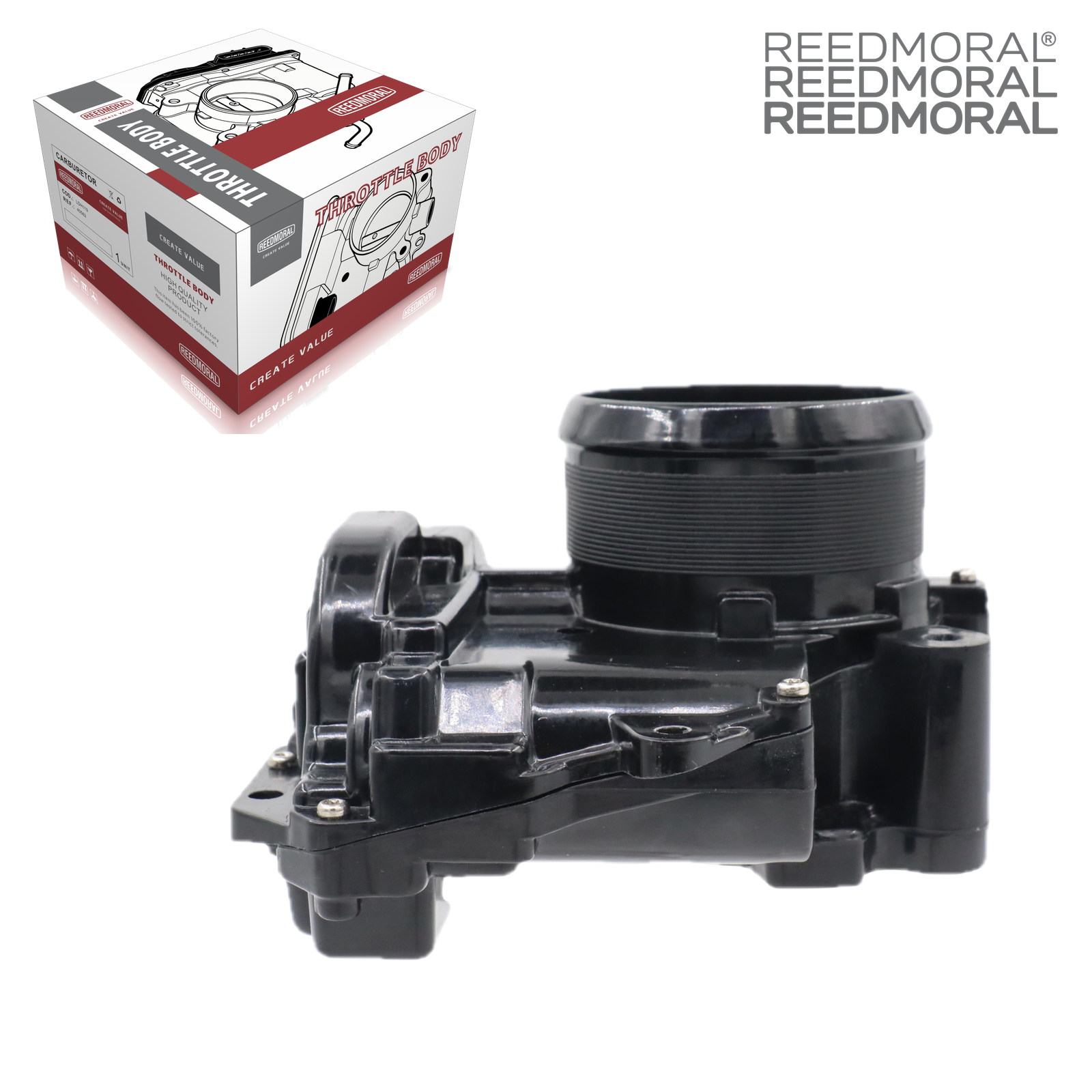

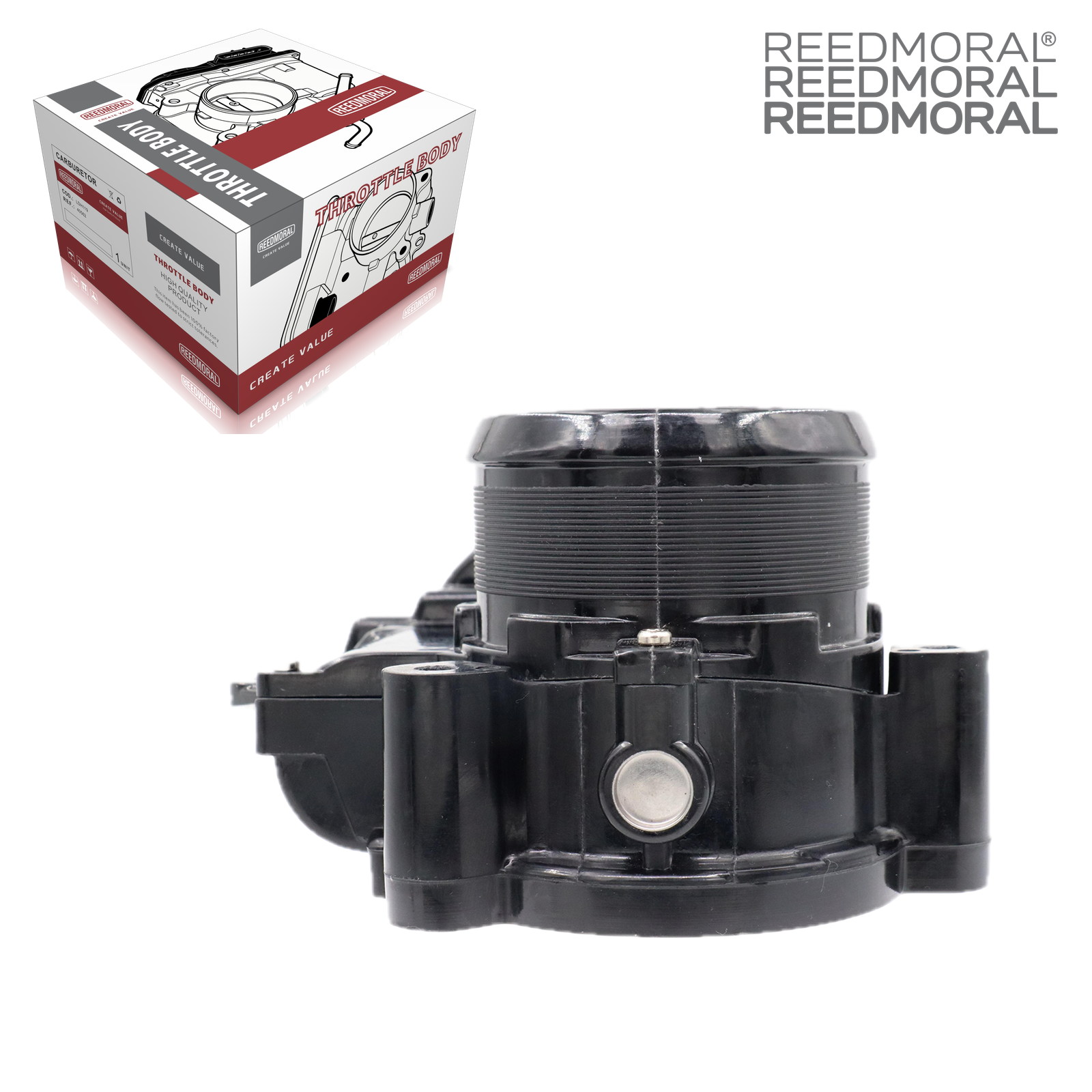

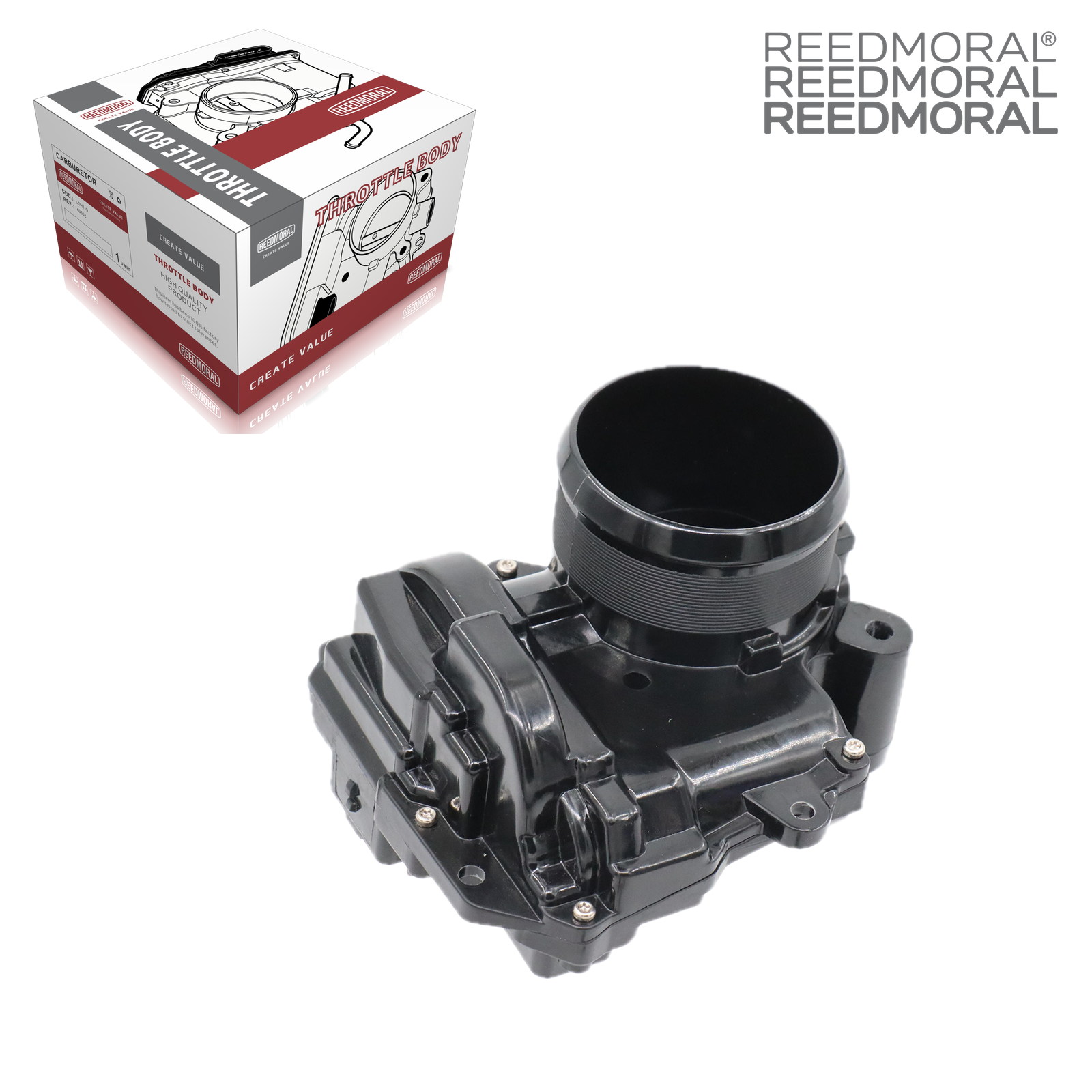

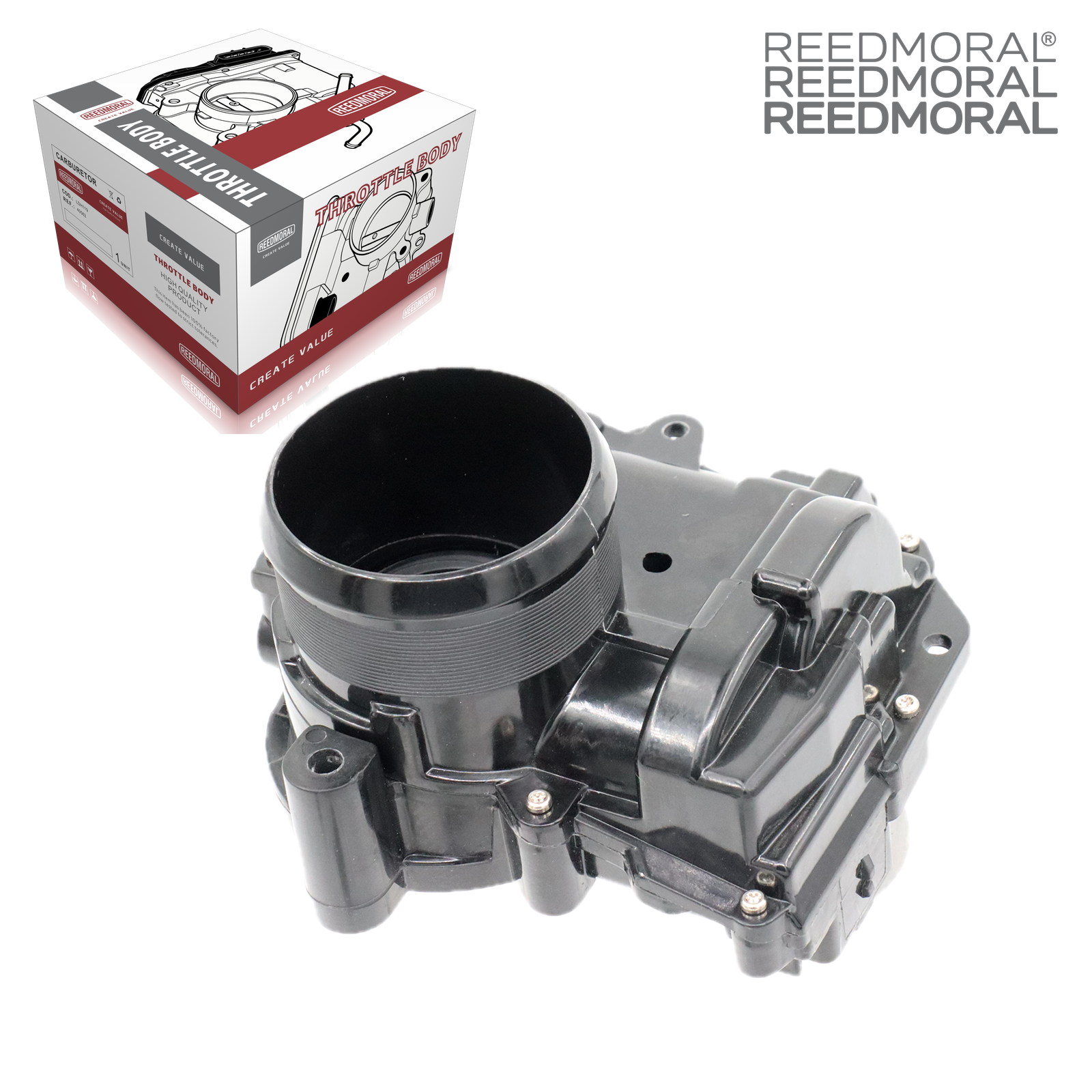

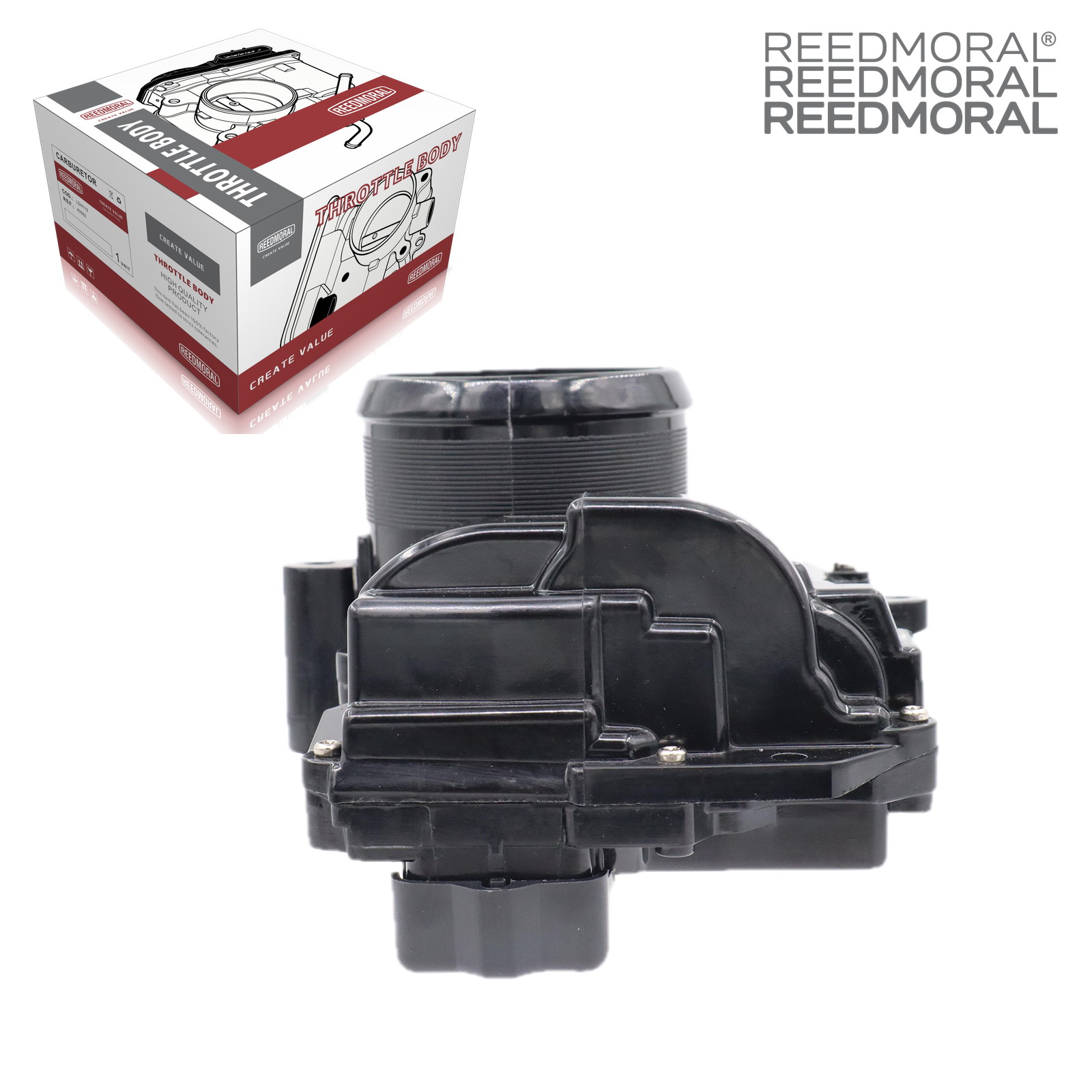

One REEDMORAL replacement component as shown in the retained product gallery. Installation hardware, gaskets, sensors or accessories are included only when visibly shown.

Catalogue Research and Confidence Boundary

• Exact-reference catalogue source 1

Research is bounded to the complete locked reference and the application context retained in Jiandaoyun. Vehicle similarity or appearance alone does not prove interchangeability.
