- Brand: REEDMORAL
- SKU: LDH265
- Product Type: Carburetor assembly
- Application: Custom, classic and motorsport engines using a compatible 40 mm DCOE / DCO-SP side-draft intake manifold
- Reference Numbers: 19550.174, 40DCOE, 40, DCOE, 151, 19550.174, 40 DCOE 151, 40 DCOE 151

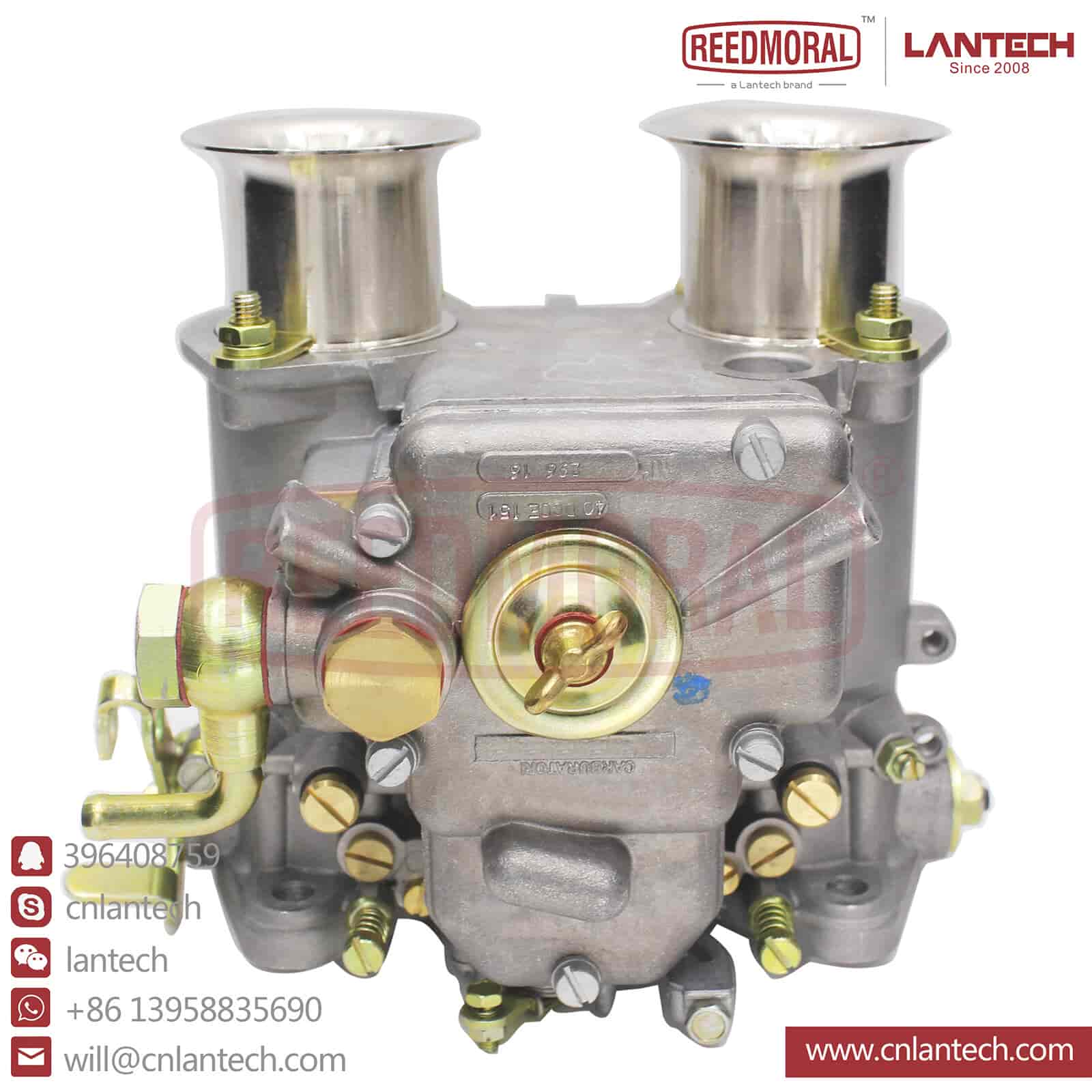

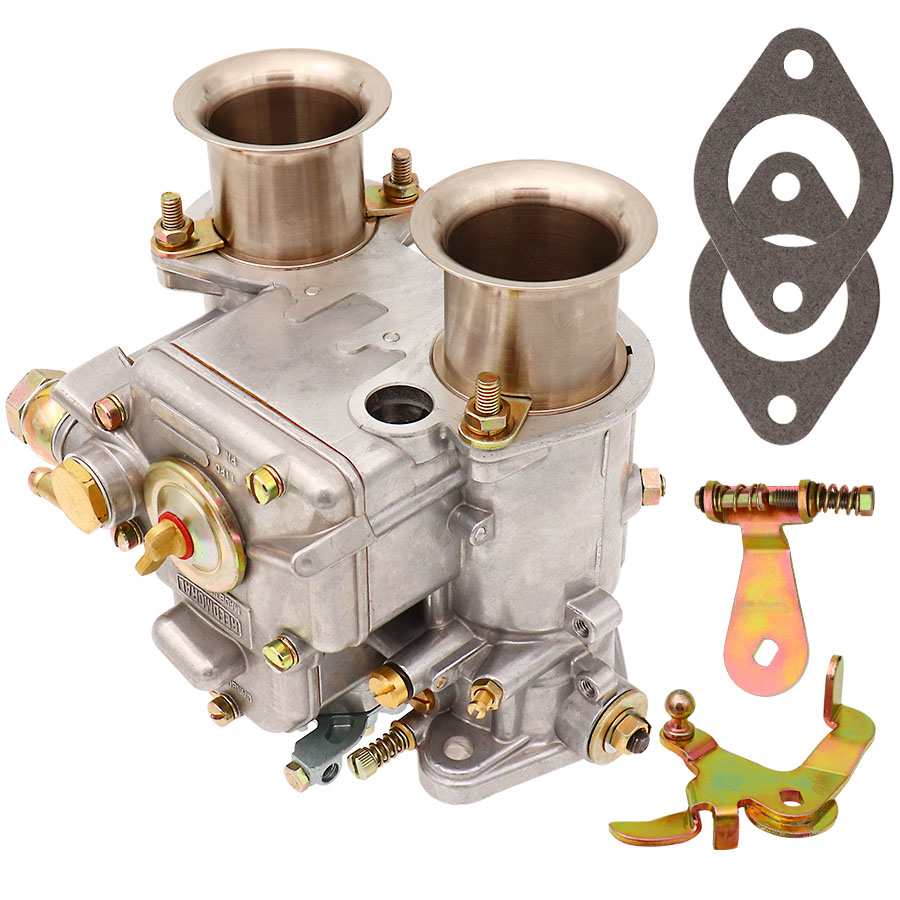

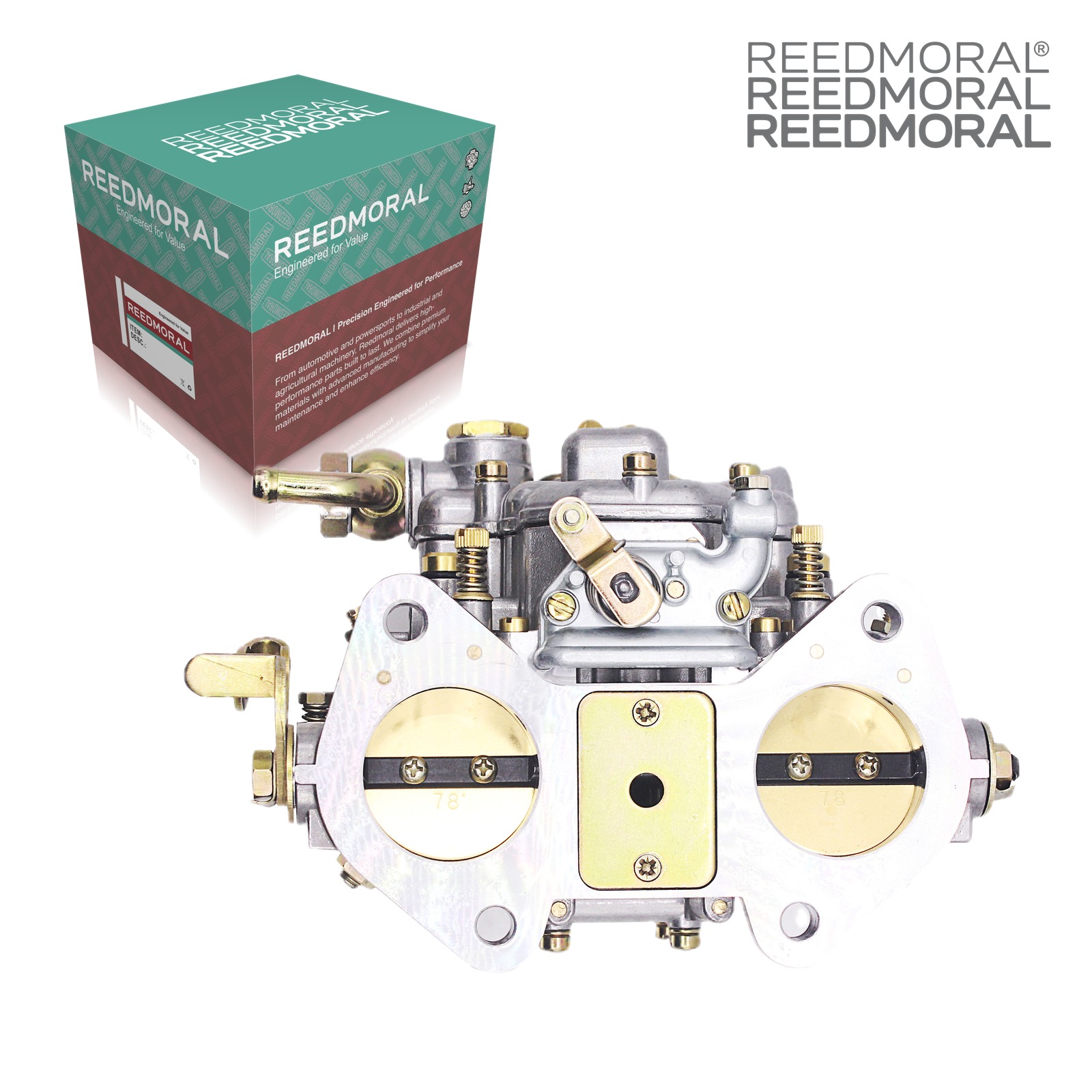

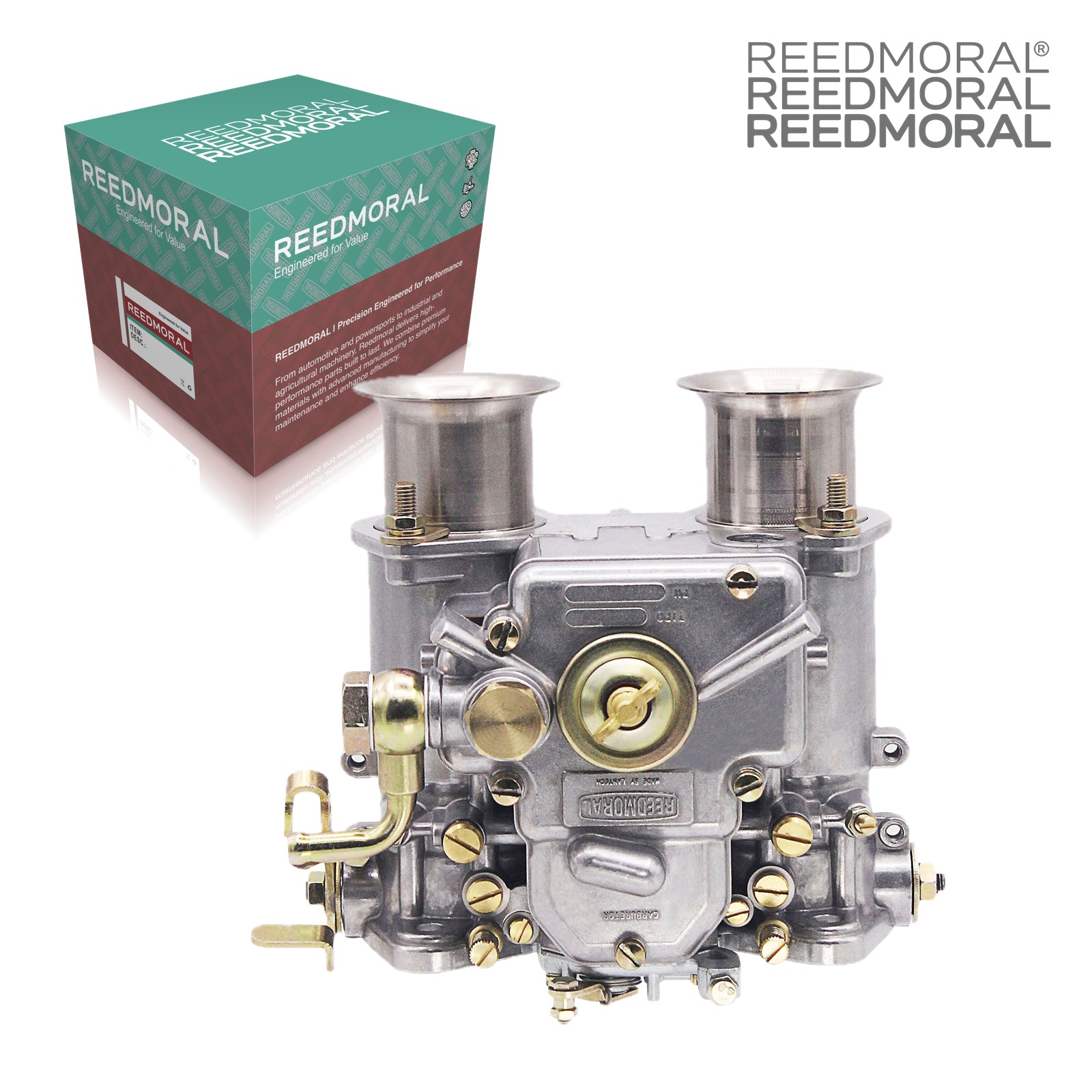

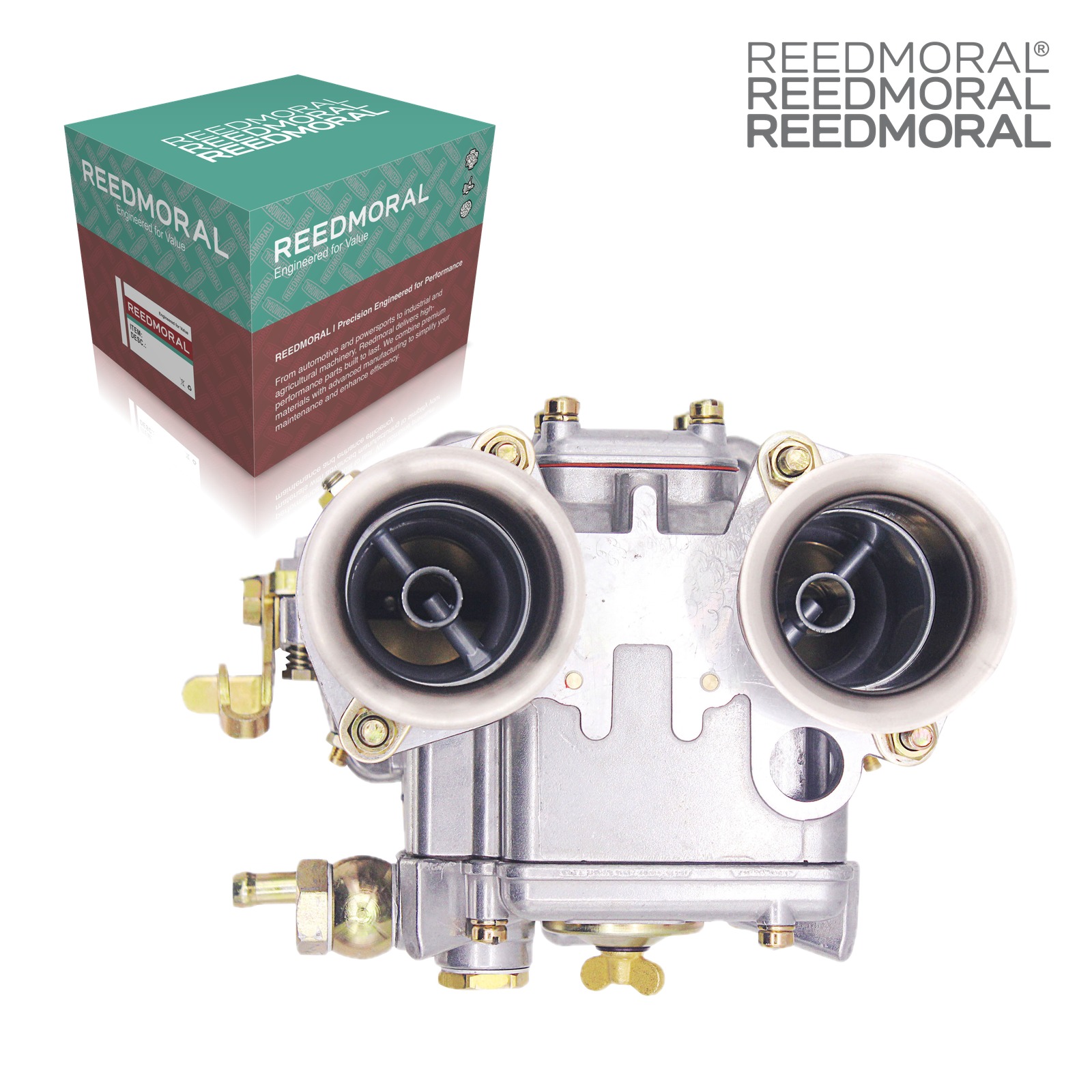

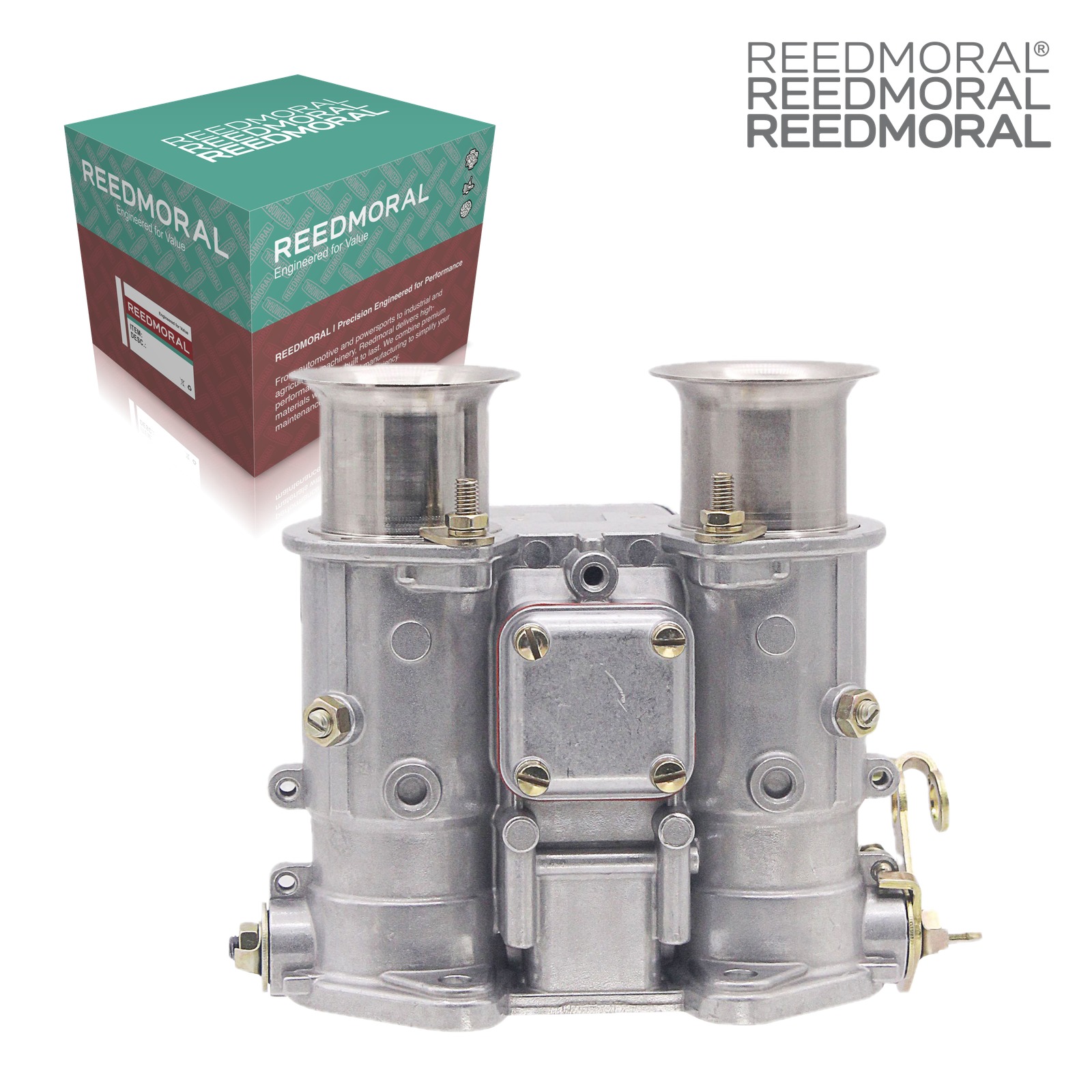

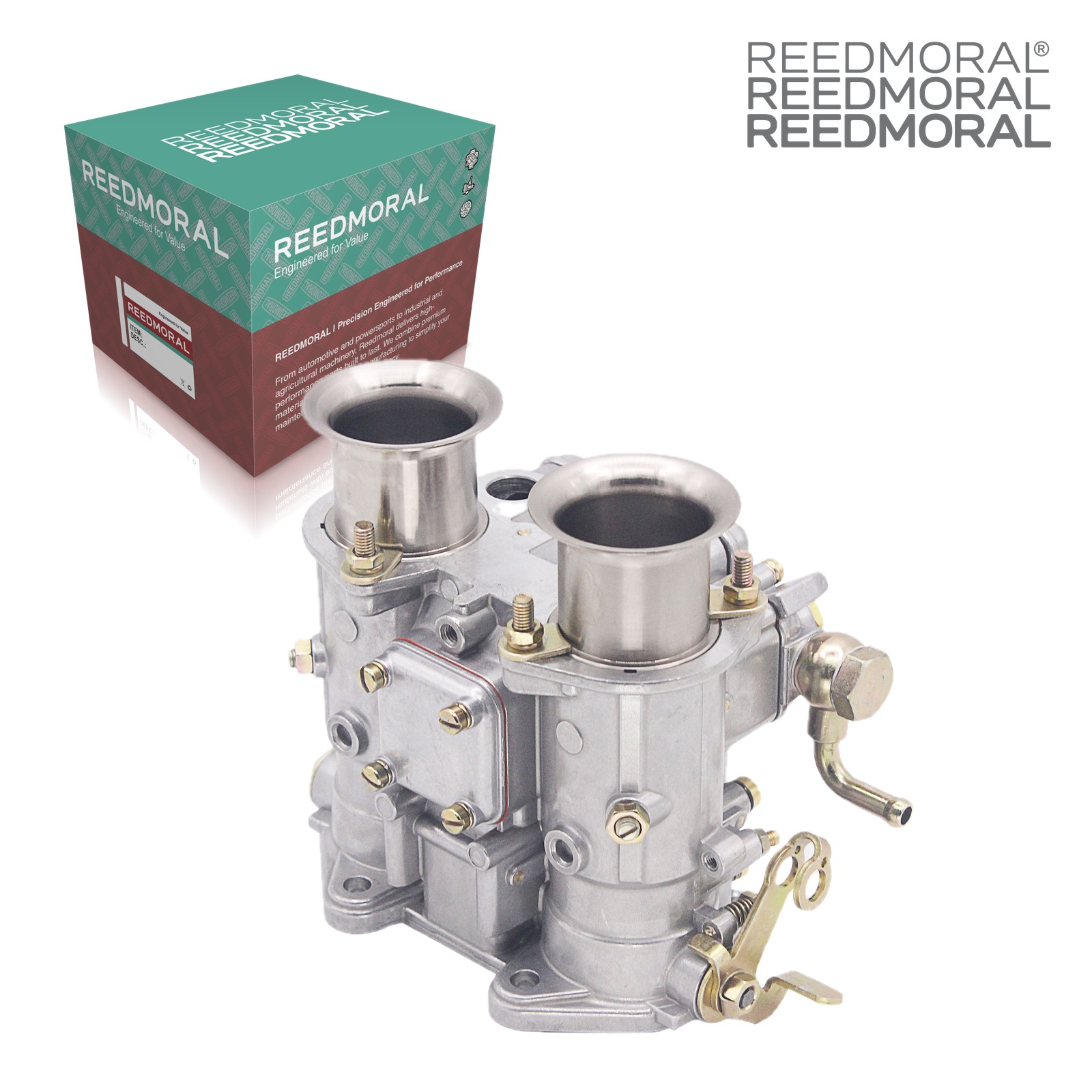

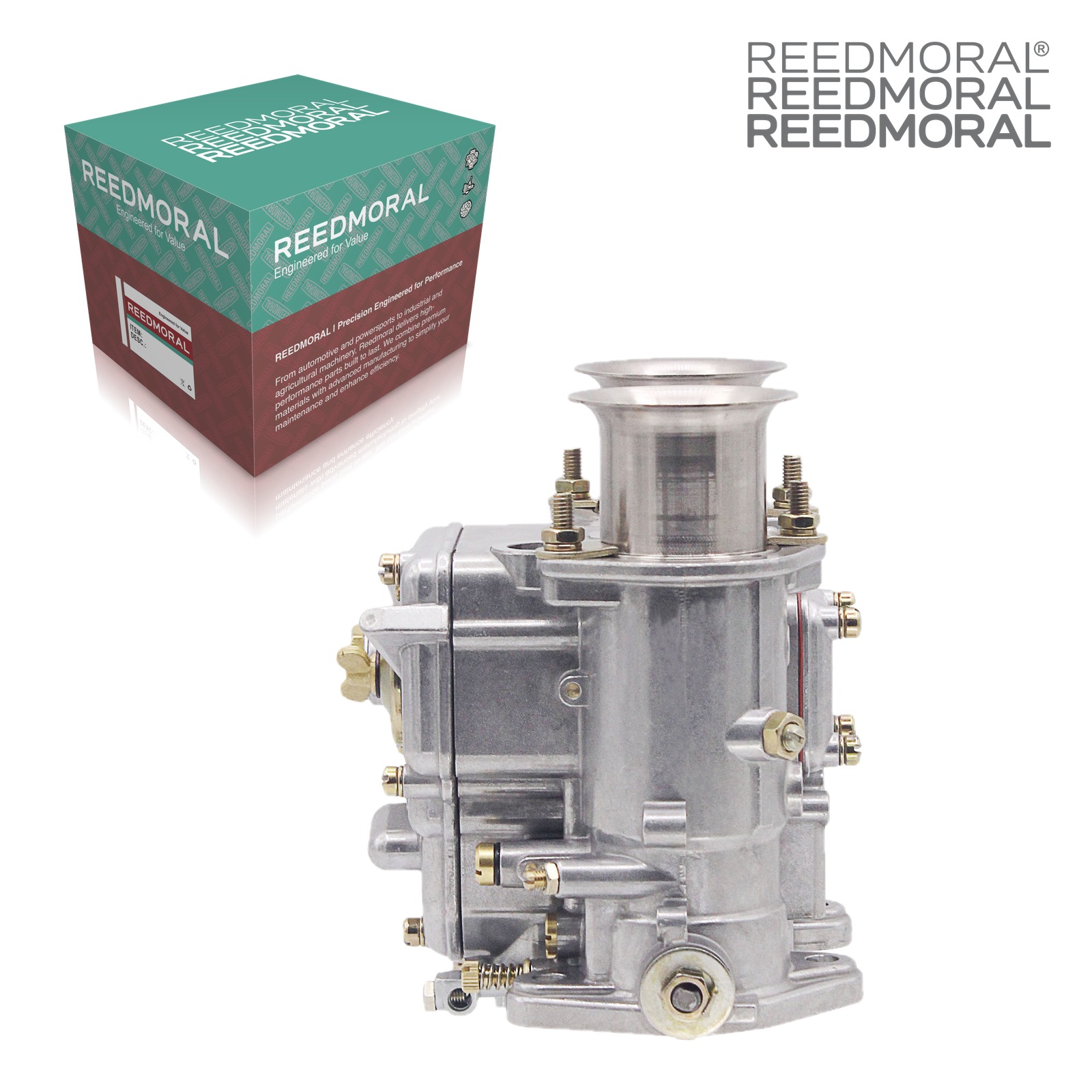

LDH265 REEDMORAL 40 DCOE-Type Twin-Barrel Side-Draft Carburetor 19550.174
Description
Product Information
Brand-new REEDMORAL carburetor assembly; this is a newly manufactured replacement part, not a rebuilt or remanufactured unit.
- SKU: LDH265
- Application: Custom, classic and motorsport engines using a compatible 40 mm DCOE / DCO-SP side-draft intake manifold
- Reference Numbers: 19550.174, 40DCOE, 40, DCOE, 151, 19550.174, 40 DCOE 151, 40 DCOE 151
Application and Fitment
- Custom / classic / motorsport conversion | Vehicle-specific; no fixed model-year range | Engine and manifold dependent | Requires matching 40 mm DCOE / DCO-SP mounting pattern
- Multi-carburetor performance setup | Vehicle-specific; no fixed model-year range | Tuned engine applications | Match handed configuration, linkage, venturi, jetting and fuel pressure
Additional Product Details

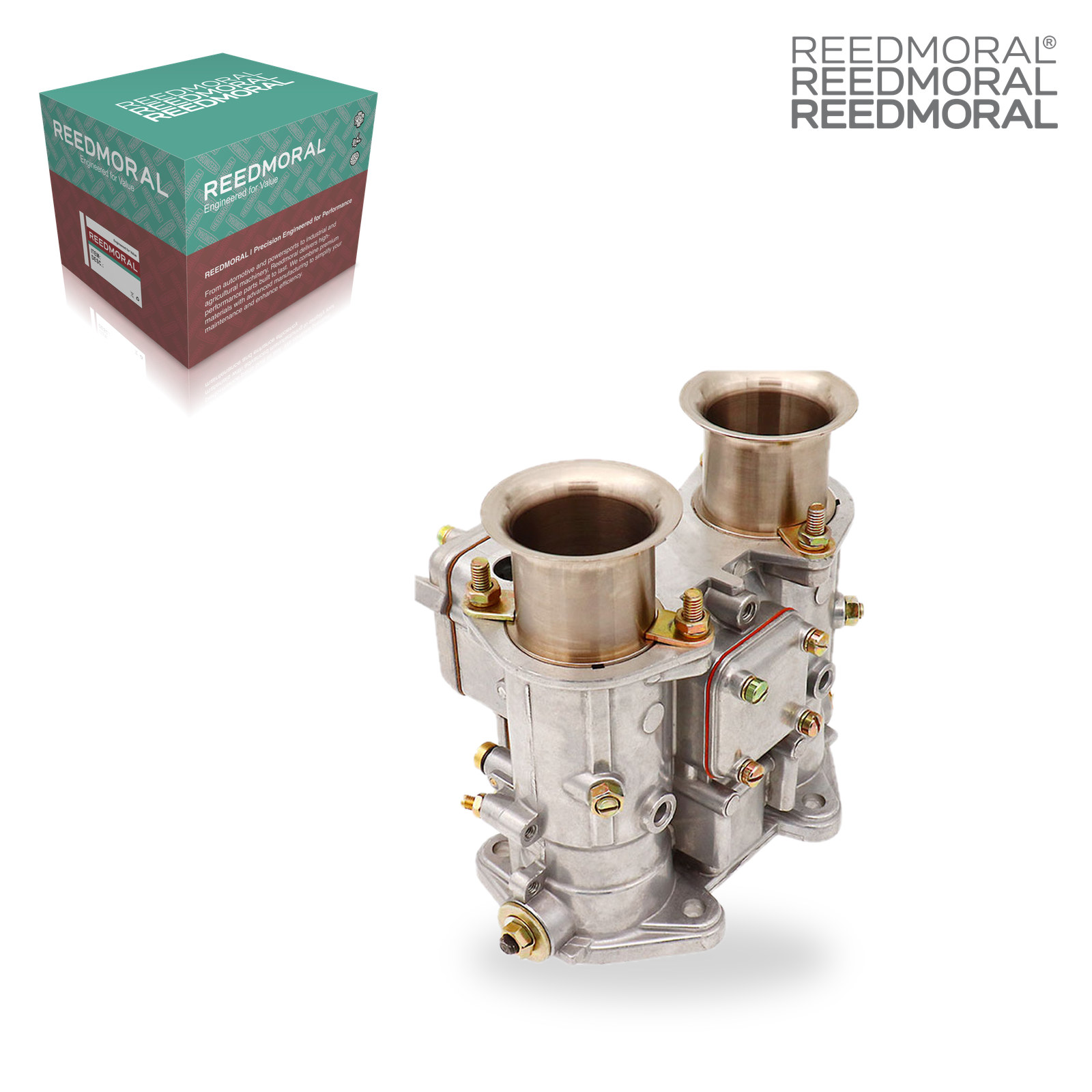

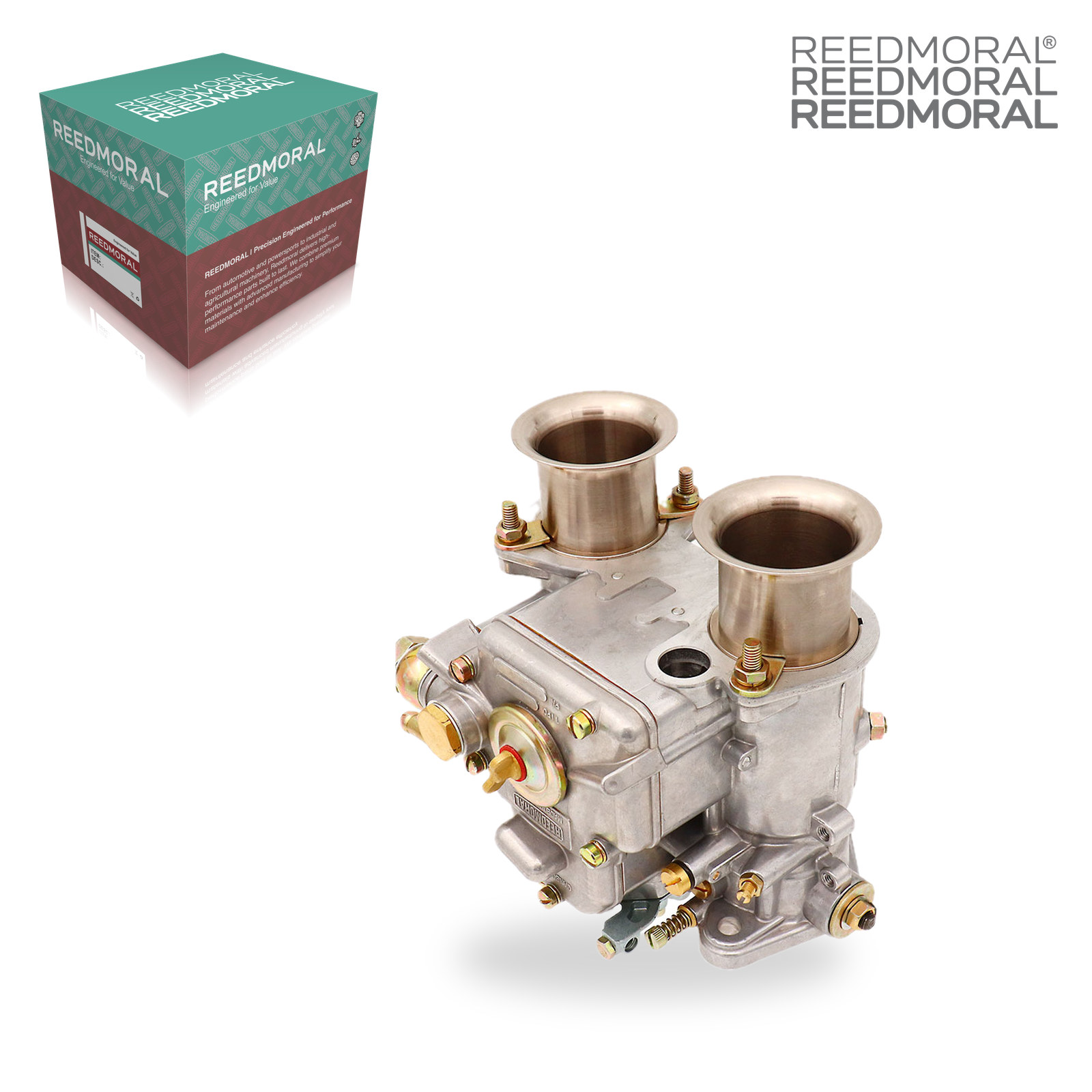

REEDMORAL LDH265 Brand-New 40 DCOE-Type Side-Draft Carburetor
LDH265 is a newly manufactured REEDMORAL twin-barrel side-draft carburetor assembly for Custom, classic and motorsport engines using a compatible 40 mm DCOE / DCO-SP side-draft intake manifold. It is a performance replacement component, not a vehicle-specific bolt-on item and not rebuilt or remanufactured.
Product Information
- Brand: REEDMORAL
- SKU: LDH265
- Type: 40 DCOE-Type twin-barrel side-draft carburetor
- Reference numbers: 19550.174, 40 DCOE 151
- Condition: 100% brand-new production; not rebuilt or remanufactured
Application and Year Fitment Guide
This performance carburetor has no single fixed vehicle or model-year range. Compatibility depends on the intake manifold, bore size, mounting pattern, linkage and engine calibration.
| Application | Years | Engine | Fitment Check |
|---|---|---|---|
| Custom / classic / motorsport conversion | Vehicle-specific; no fixed range | Engine and manifold dependent | Confirm 40 mm DCOE / DCO-SP flange, bore spacing and available clearance |
| Single or multi-carburetor performance setup | Vehicle-specific; no fixed range | Professionally tuned applications | Match handed configuration, linkage, venturi, jetting and fuel pressure |
How to Confirm Fitment
- Compare the original carburetor model and reference number.
- Measure the mounting-hole centers, throttle-bore size and manifold flange.
- Check air-horn clearance, fuel inlet position and throttle-linkage direction.
- Confirm whether the installation needs a left/right or matched-pair configuration.
- Plan professional venturi, jetting, synchronization and fuel-pressure setup before operation.
Important
Reference numbers identify the carburetor family and configuration. They do not by themselves guarantee vehicle fitment. Compare the complete physical layout shown in the photographs before ordering.
How to Confirm Fitment
- Match the reference number or casting number on the original part.
- Compare the complete housing, mounting pattern, connectors, ports and linkage direction.
- Confirm the vehicle model, production year, engine and regional specification before ordering.
Important Notes
Reference numbers identify a part family or configuration and do not by themselves guarantee fitment. Professional installation and final adjustment are recommended where applicable.
Factory Calibration Specifications
Factory-recorded baseline jet and venturi specifications. Values are shown as recorded in the production data; final tuning may vary with engine setup, altitude, fuel and local conditions.
| Carburetor Type | 40DC0E |
|---|---|
| Emulsion Tube | F11 |
| Pump Jet | 40 |
| Needle Valve | 1.75 |
| Idle Jet | 45 |
| Main Jet | 115 |
| Main Air Jet | 200 |
| Venturi (Choke Tube) | 30 |
| Auxiliary Venturi | 10.5 |
Additional information
| Weight | 2.8 kg |
|---|---|
| Dimensions | 28 × 25 × 19 cm |
| Reference | 19550.174, 40 DCOE 151 |
| Brand | REEDMORAL |
| Condition | Brand New |
