- Brand: REEDMORAL
- SKU: LDH308C
- Product Type: Carburetor assembly
- Application: Selected Porsche 911, 906 and 914/6 performance applications using a compatible 46 IDA 3C triple-throat setup
- Reference Numbers: 46 IDA 3C, 31360.001

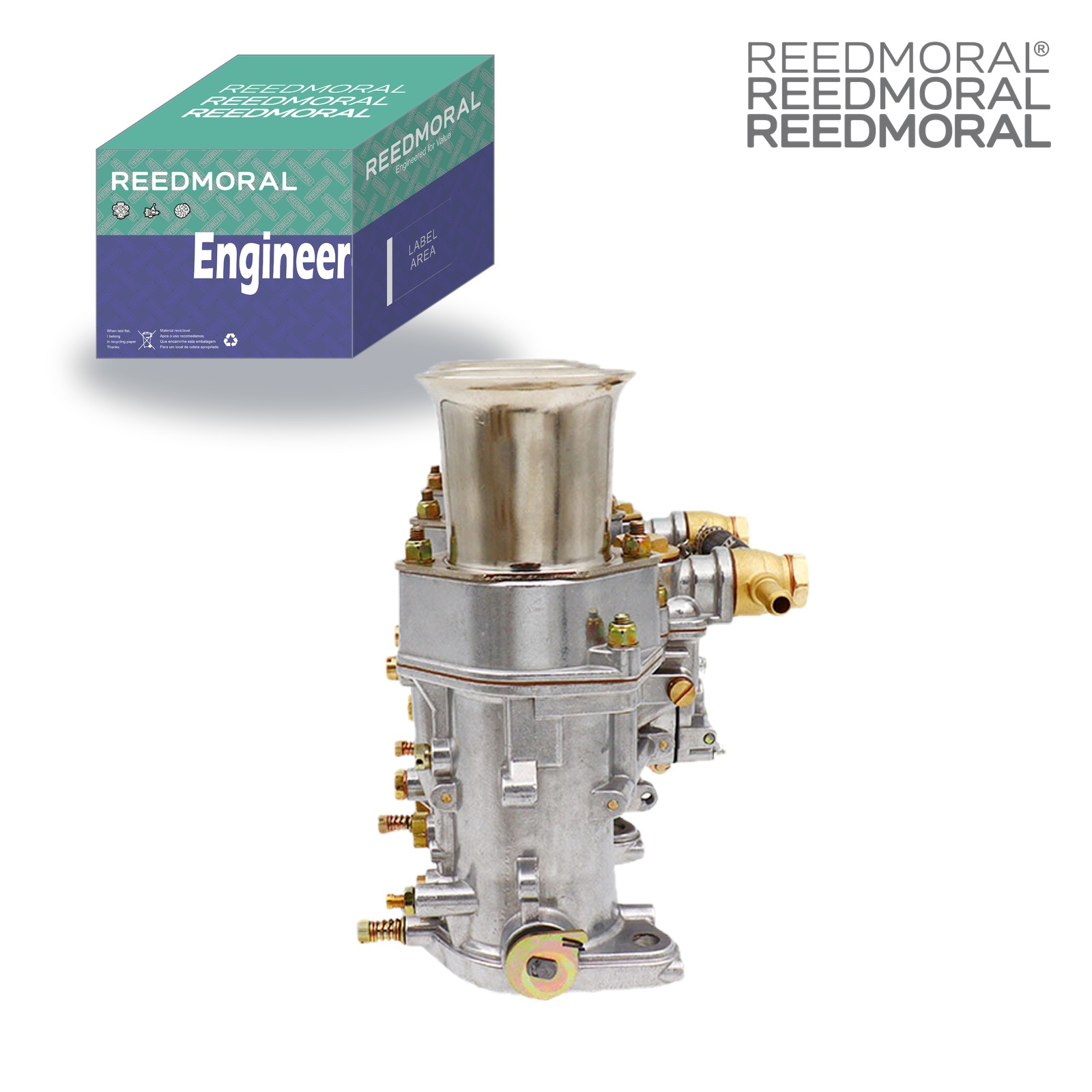

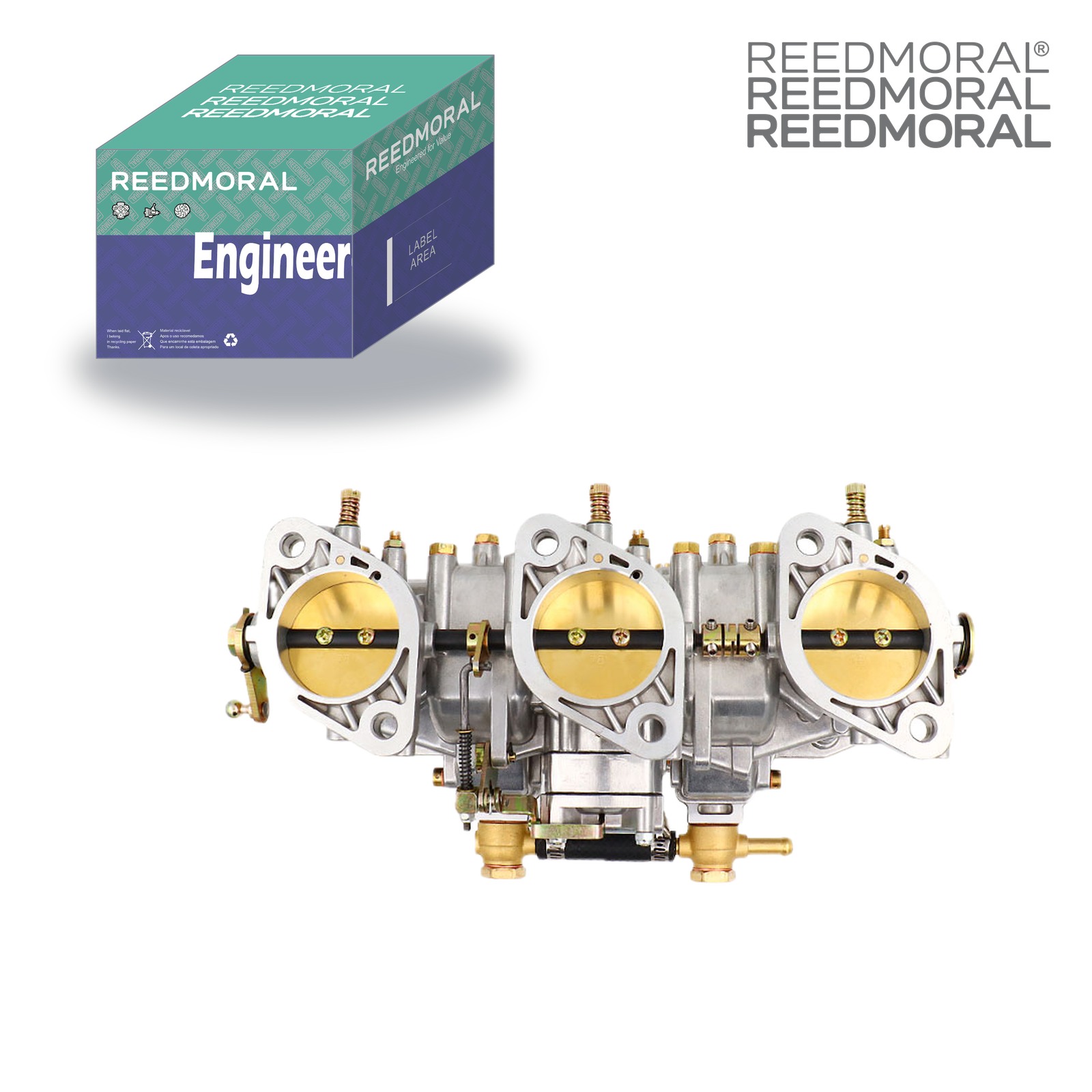

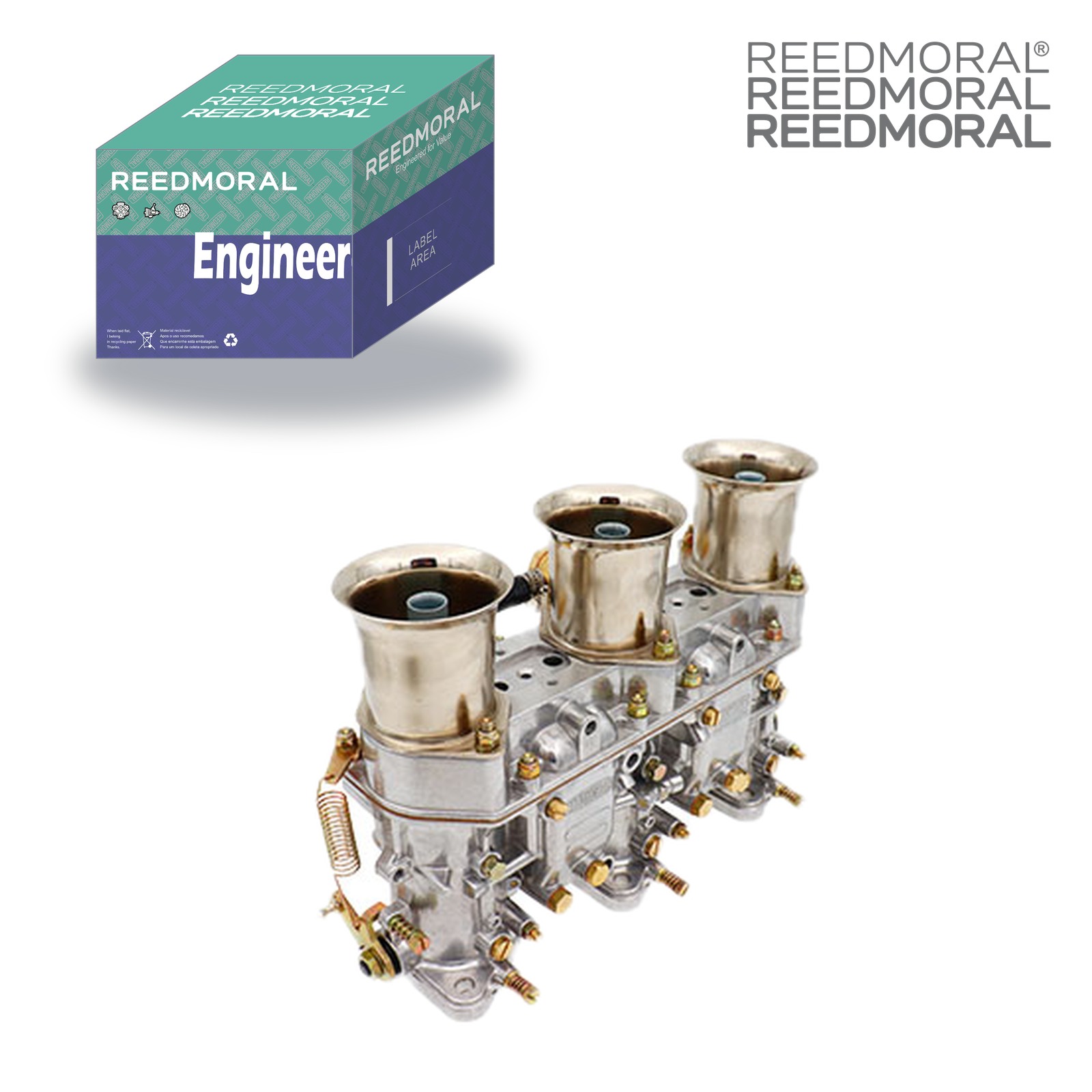

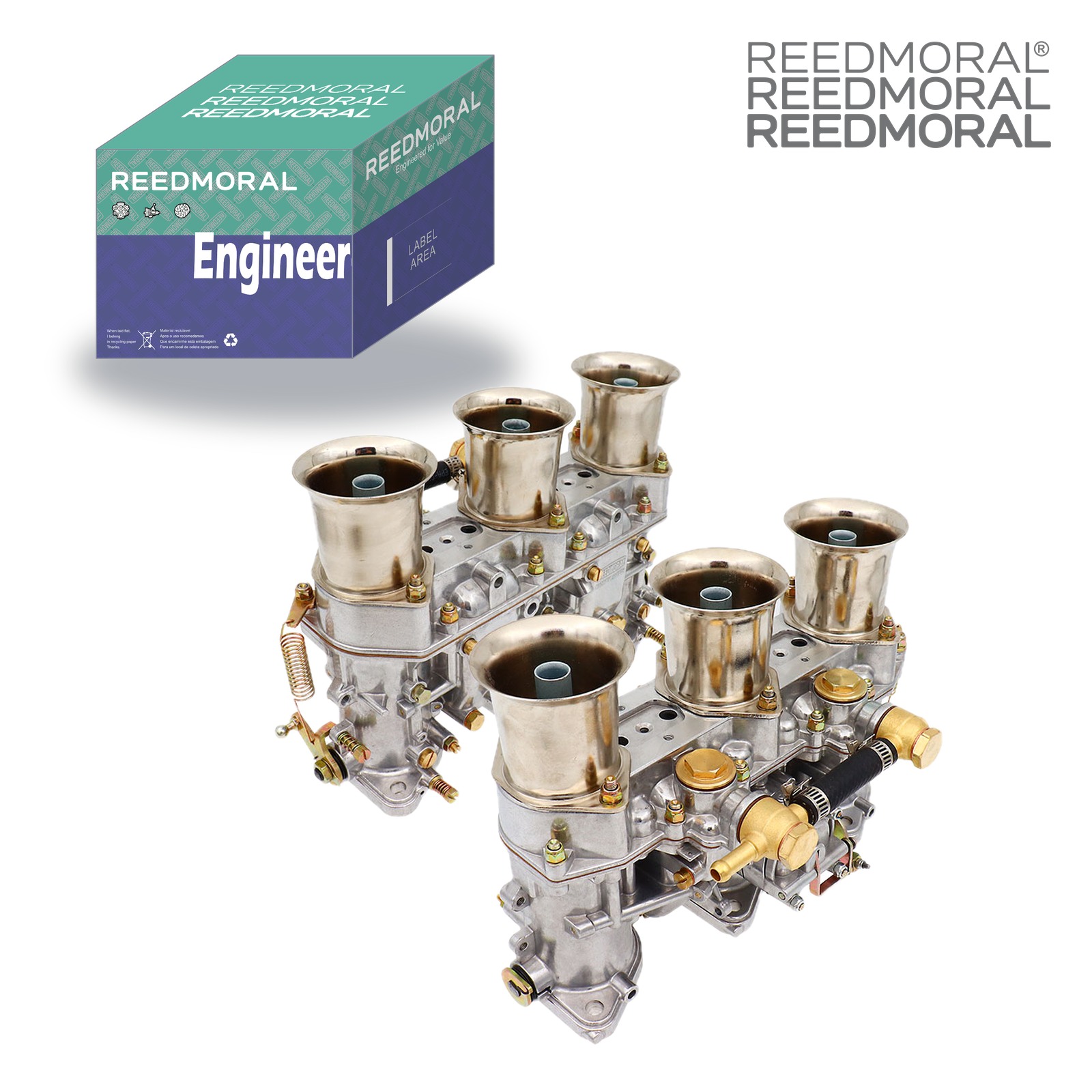

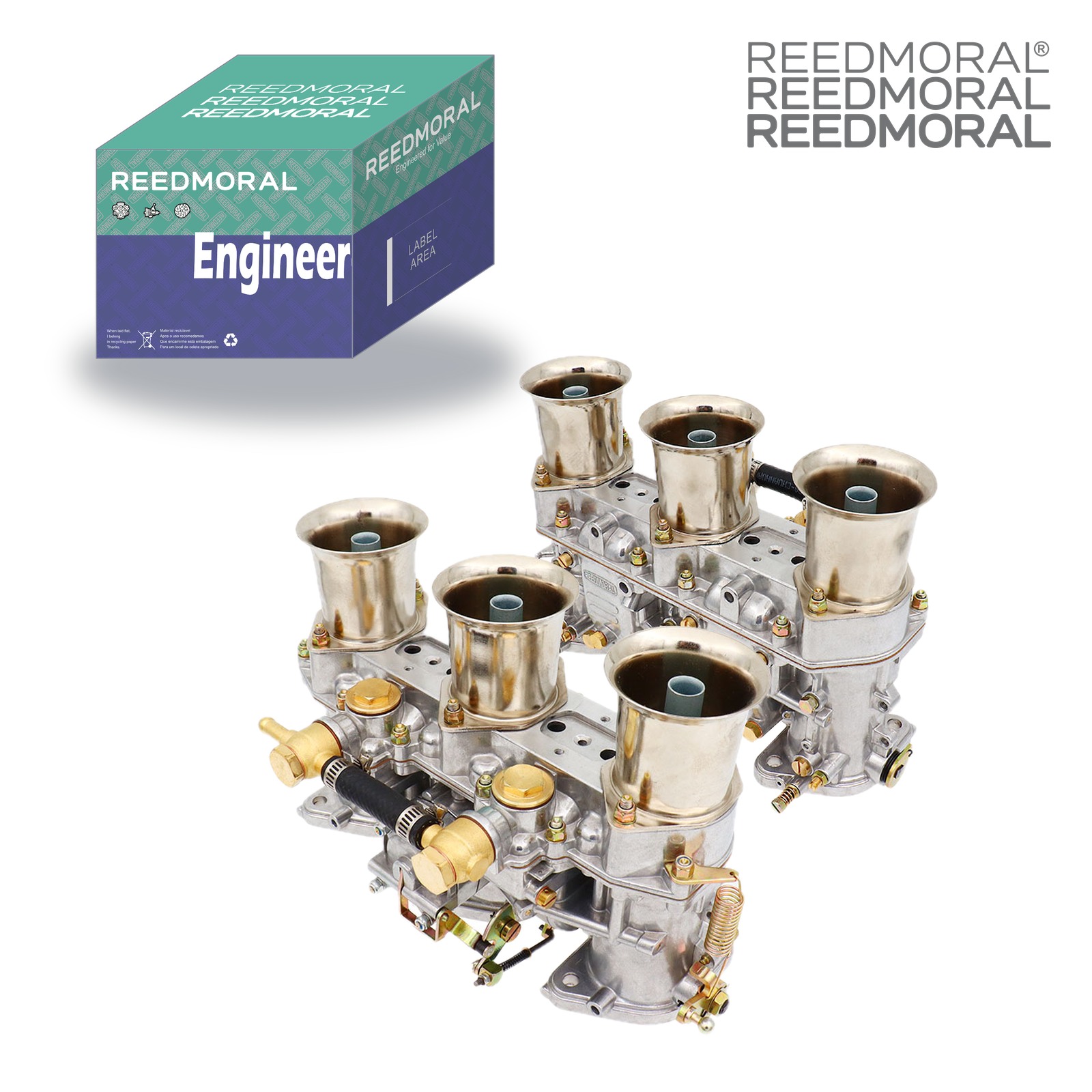

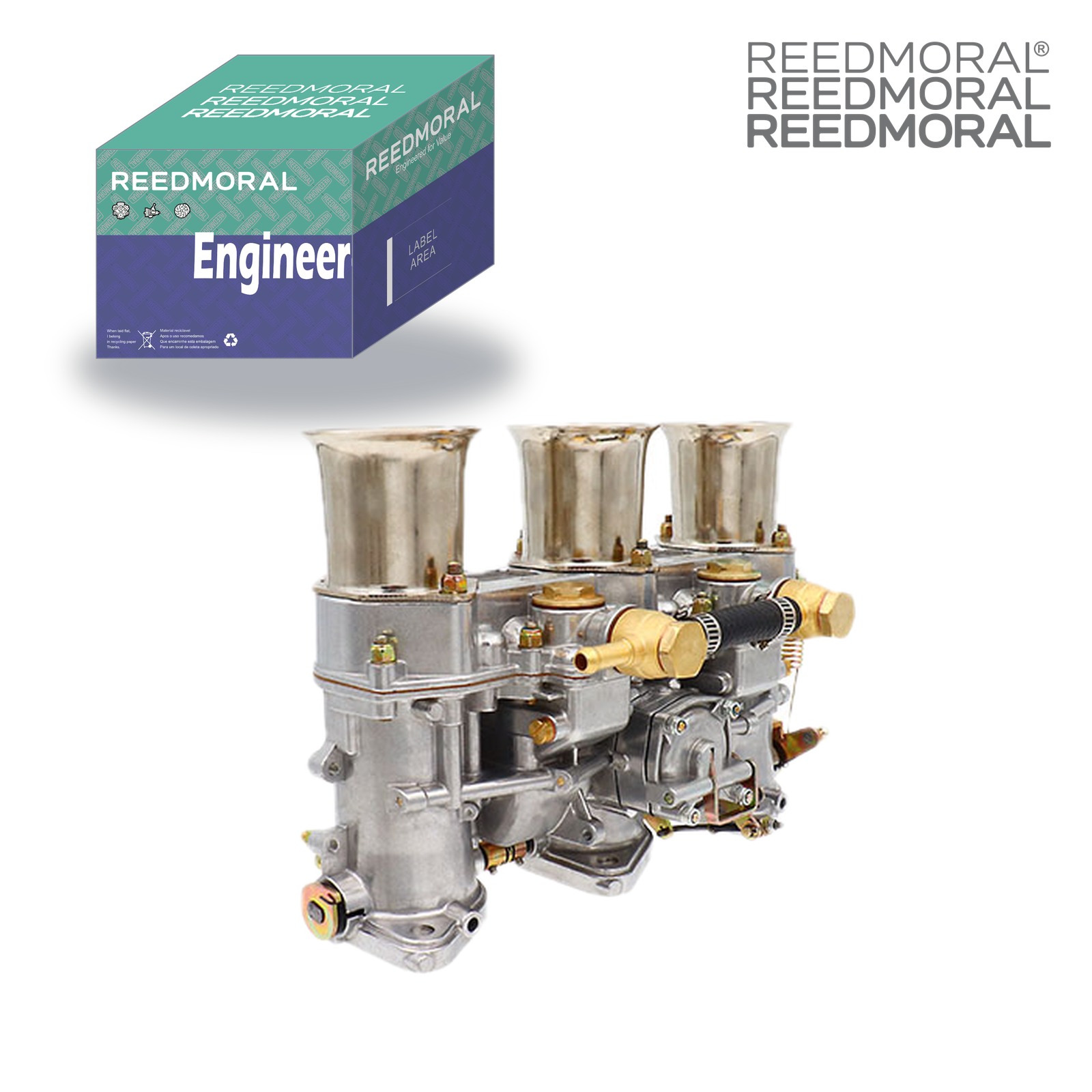

LDH308C REEDMORAL 46 IDA 3C Triple-Throat Carburetor for Porsche 31360.001
Description
Product Overview
The LDH308C is a brand-new REEDMORAL carburetor assembly, newly manufactured rather than rebuilt or remanufactured.
- Application: Selected Porsche 911, 906 and 914/6 performance applications using a compatible 46 IDA 3C triple-throat setup
- Reference Numbers: 46 IDA 3C, 31360.001
- Configuration: 46 mm triple-throat high-performance carburetor, 3C-side configuration; pair-side and calibration must be matched
Factory Calibration Specifications
Factory-recorded baseline values. Final tuning may vary with the complete engine and vehicle setup.
| Carburetor Type | 46 IDA 3C |
|---|---|
| Emulsion Tube | F.24 |
| Pump Jet | 50 |
| Needle Valve | 1.75 |
| Idle Jet | 70 |
| Main Jet | 170 |
| Main Air Jet | 145 |
| Venturi | 42 |
| Auxiliary Venturi | 10.5 |
Application and Year Fitment Guide
The 46 IDA configuration is intended for specialized performance use. It is not a direct substitute for a 40 IDA unit without confirming manifold bore, engine specification, linkage and calibration.
| Make / Model | Years | Engine / Setup | Fitment Check |
|---|---|---|---|
| Porsche 911 performance builds | Application-specific | Modified flat-six gasoline | Confirm 46 mm manifold, 3C side and engine calibration |
| Porsche 906 / 914-6 competition use | Application-specific | Flat-six gasoline | Professional system design, synchronization and tuning required |
How to Confirm Fitment
- Match the complete model and reference markings.
- Compare the mounting flange, bore arrangement, choke, fuel inlet, vacuum ports and linkage.
- Confirm the manifold or adapter, air-cleaner clearance and fuel-system requirements.
- Have a qualified installer perform synchronization, calibration and final adjustment.
Important Notes
Vehicle production changes and custom conversion parts can alter fitment. Select by complete configuration, not appearance alone.
Additional information
| Reference | 46 IDA 3C, 31360.001 |
|---|
