- Brand-new Lantech-manufactured TBI assembly — not remanufactured
- SKU: J1109A
- Reference: 17093030; GM service assembly 17112913
- For select 1993–1995 Chevrolet / GMC 5.7L V8 TBI applications
- Please verify the original number, injector calibration, connectors and port configuration before ordering.
J1109A NEW TBI THROTTLE BODY 17093030 FOR 1993-1995 CHEVROLET GMC 5.7L
$335.00
Description
J1109A is a brand-new dual-injector throttle body injection (TBI) assembly manufactured by Lantech for select 1993–1995 Chevrolet and GMC 5.7L V8 applications. This is a newly produced replacement assembly, not a remanufactured or rebuilt unit. It contains no reused core and is supplied as shown in the product photographs.
Reference Numbers
- 17093030 — product / casting reference
- 17112913 — GM service assembly associated with product 17093030
Applications
Selected 1993–1995 Chevrolet and GMC 5.7L V8 TBI vehicles, including applicable:
- C1500 / C2500
- K1500 / K2500
- Silverado / Sierra
- Suburban
- Tahoe / Yukon
- Blazer
Product Features
- Brand-new complete dual-injector TBI throttle body assembly
- Newly manufactured housing and components — no reused core
- Injectors, fuel-pressure regulator, throttle-position sensor and idle-air-control components included as pictured

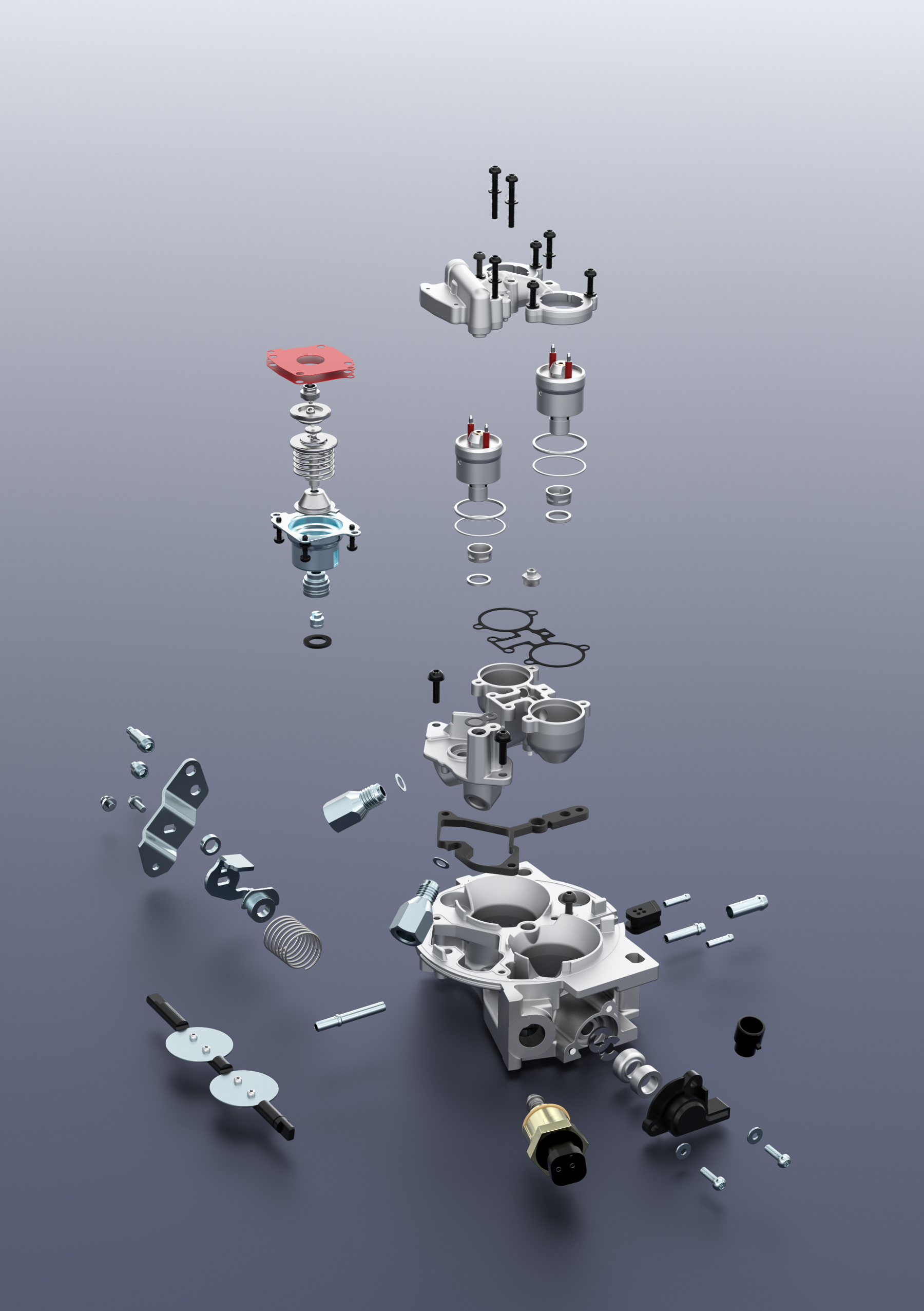

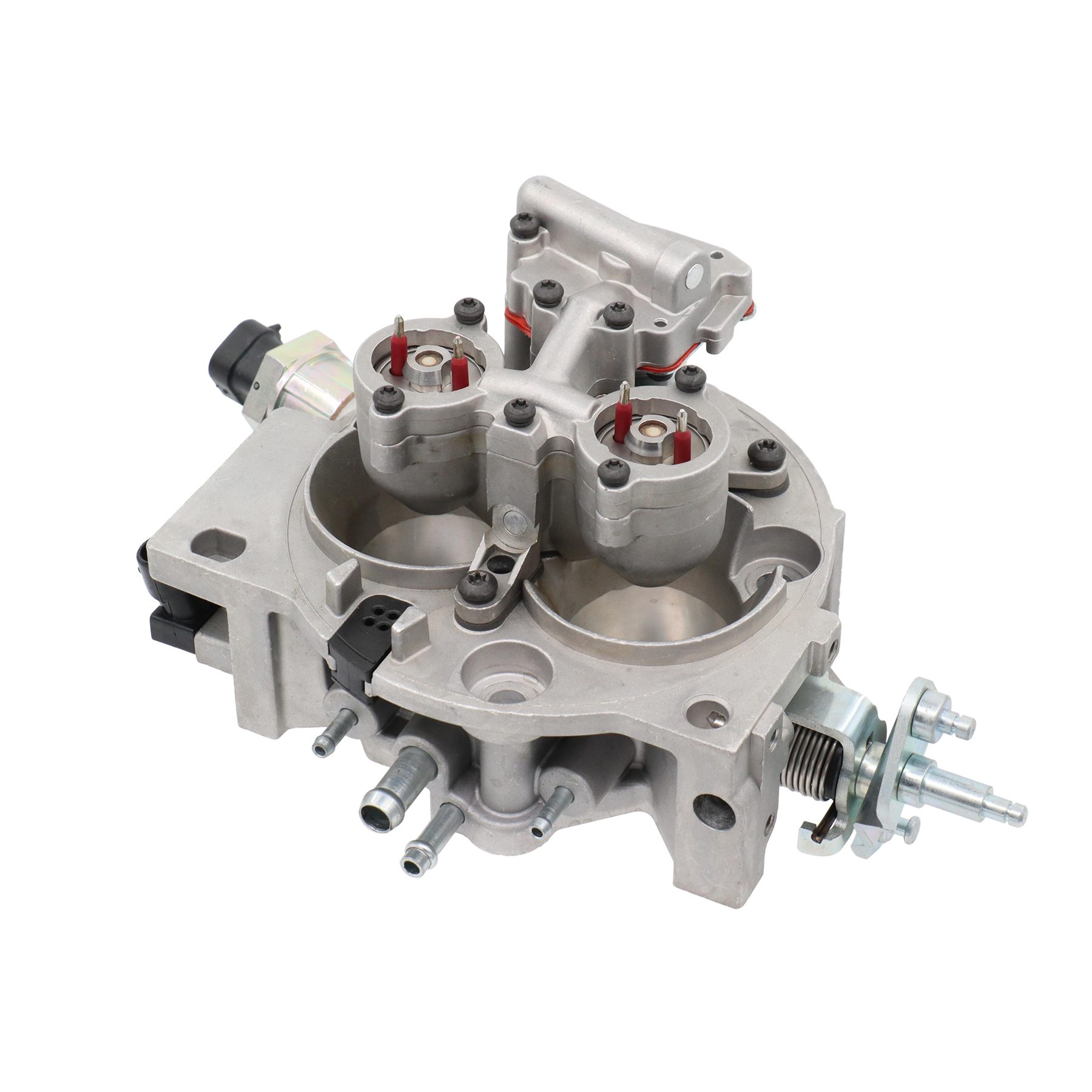

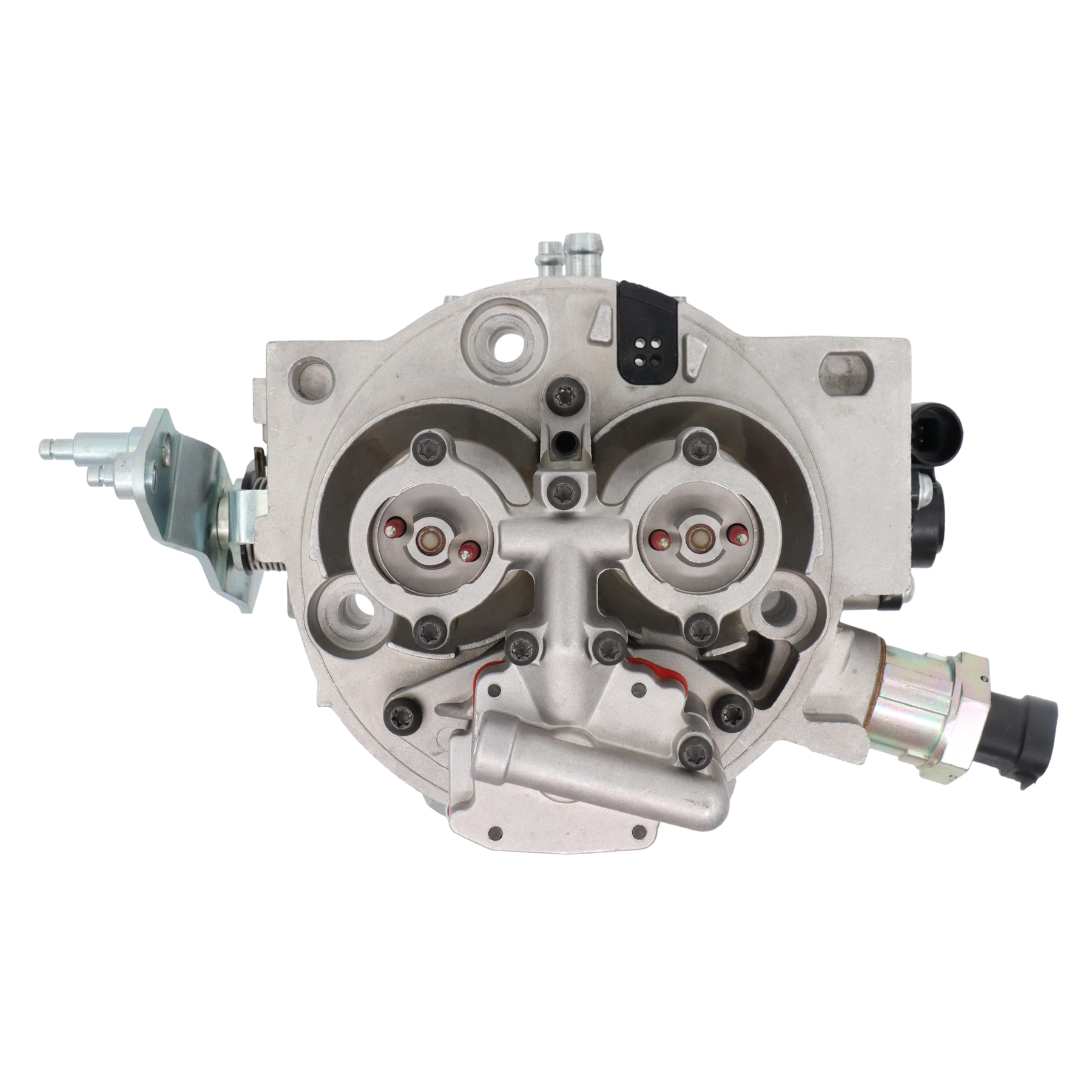

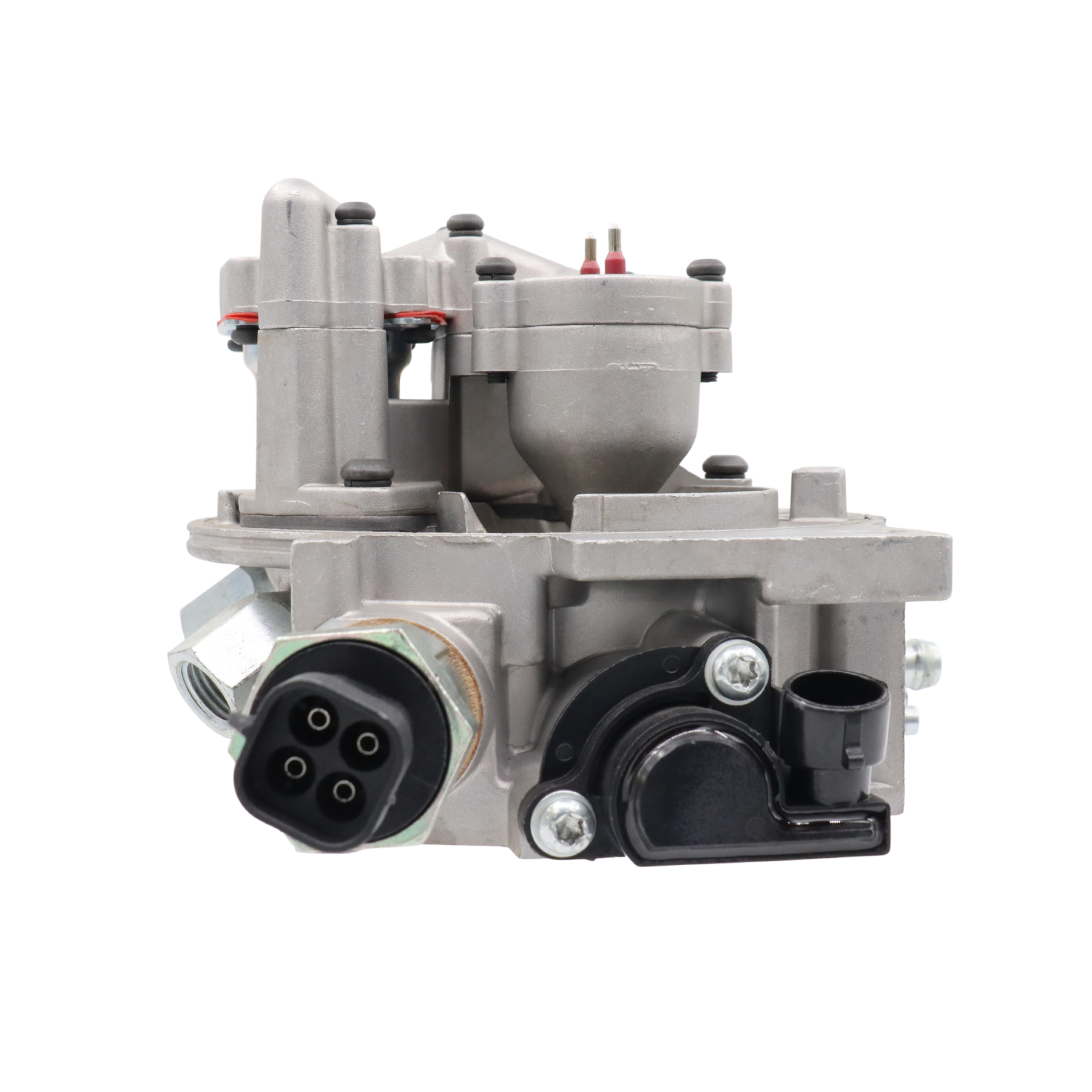

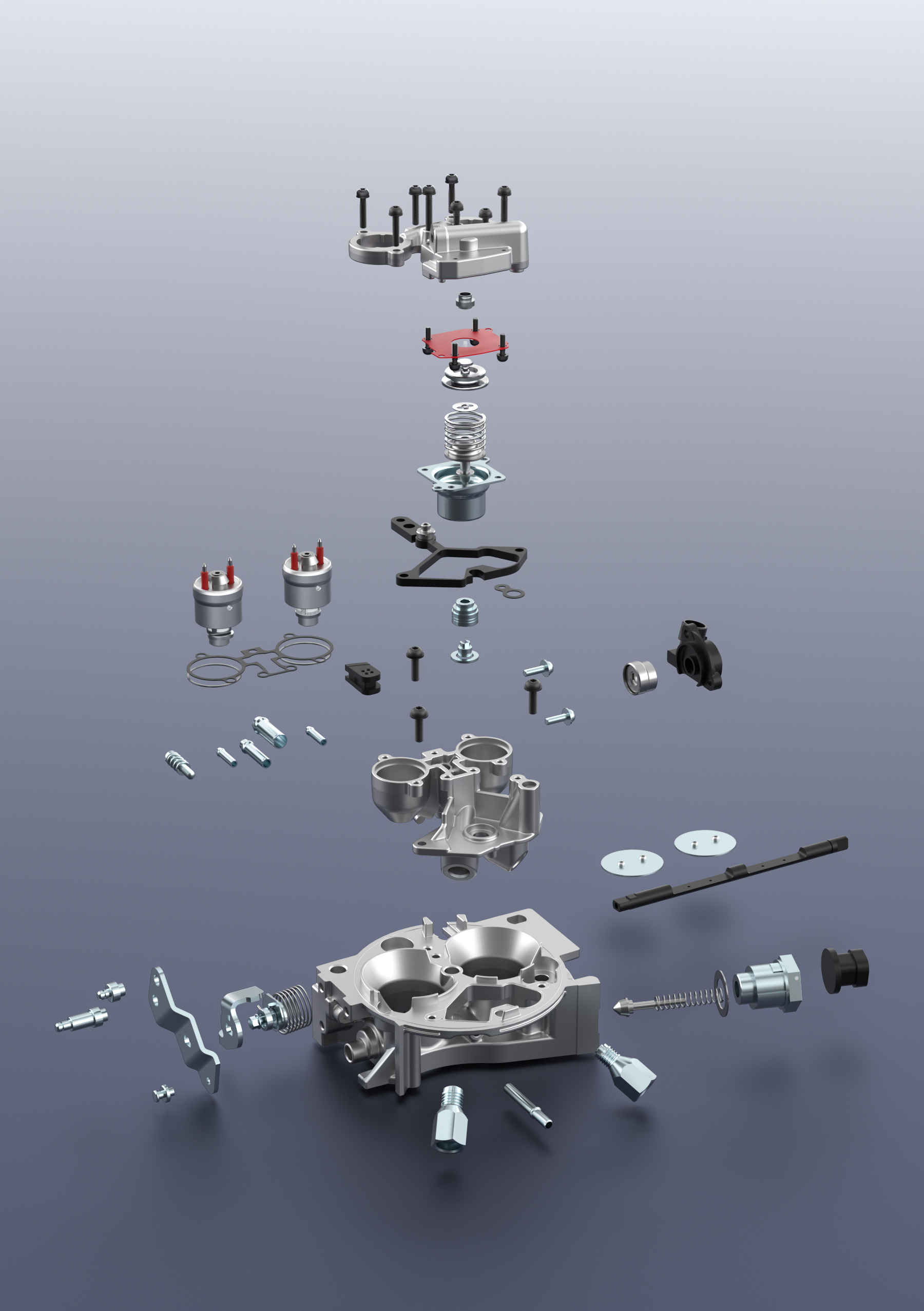

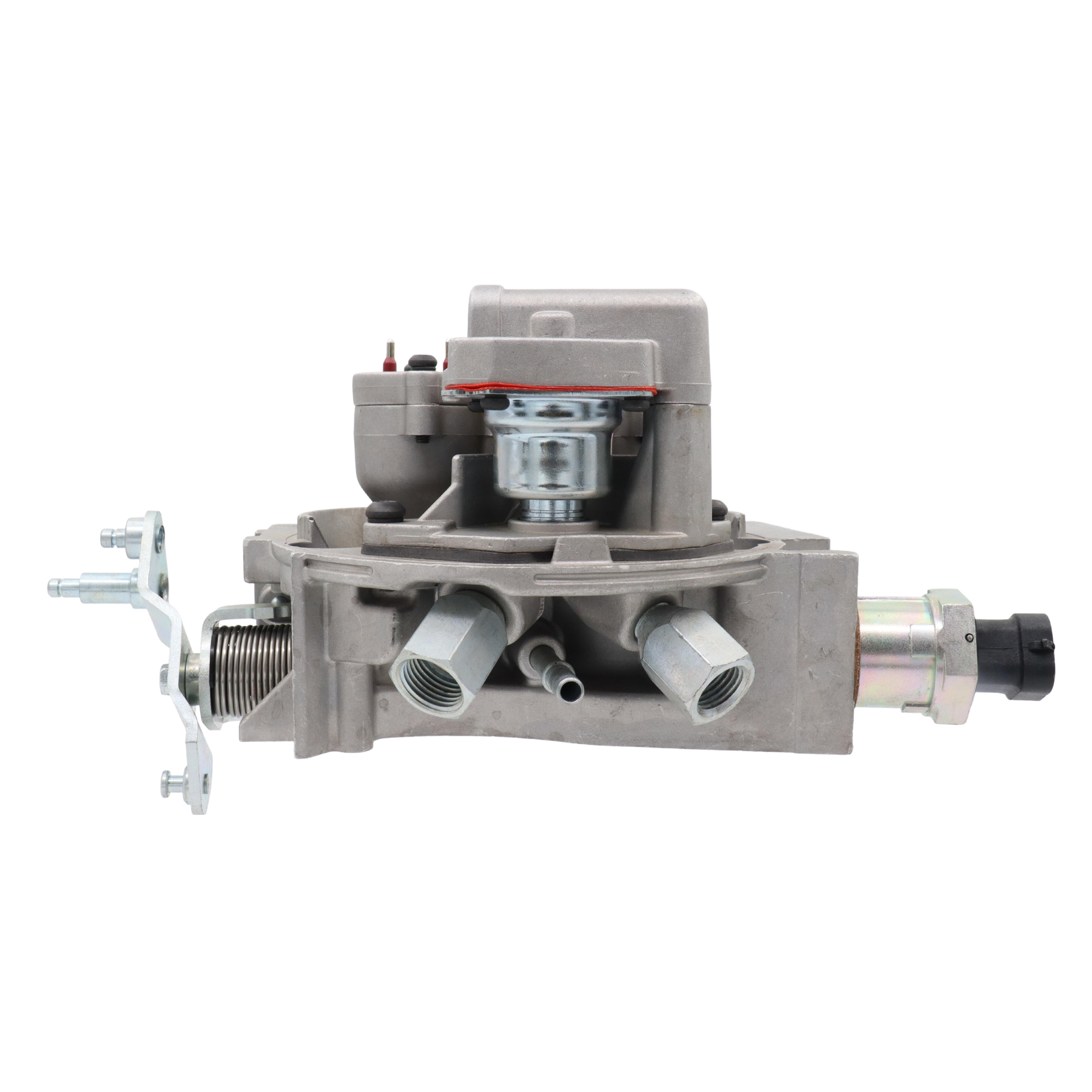

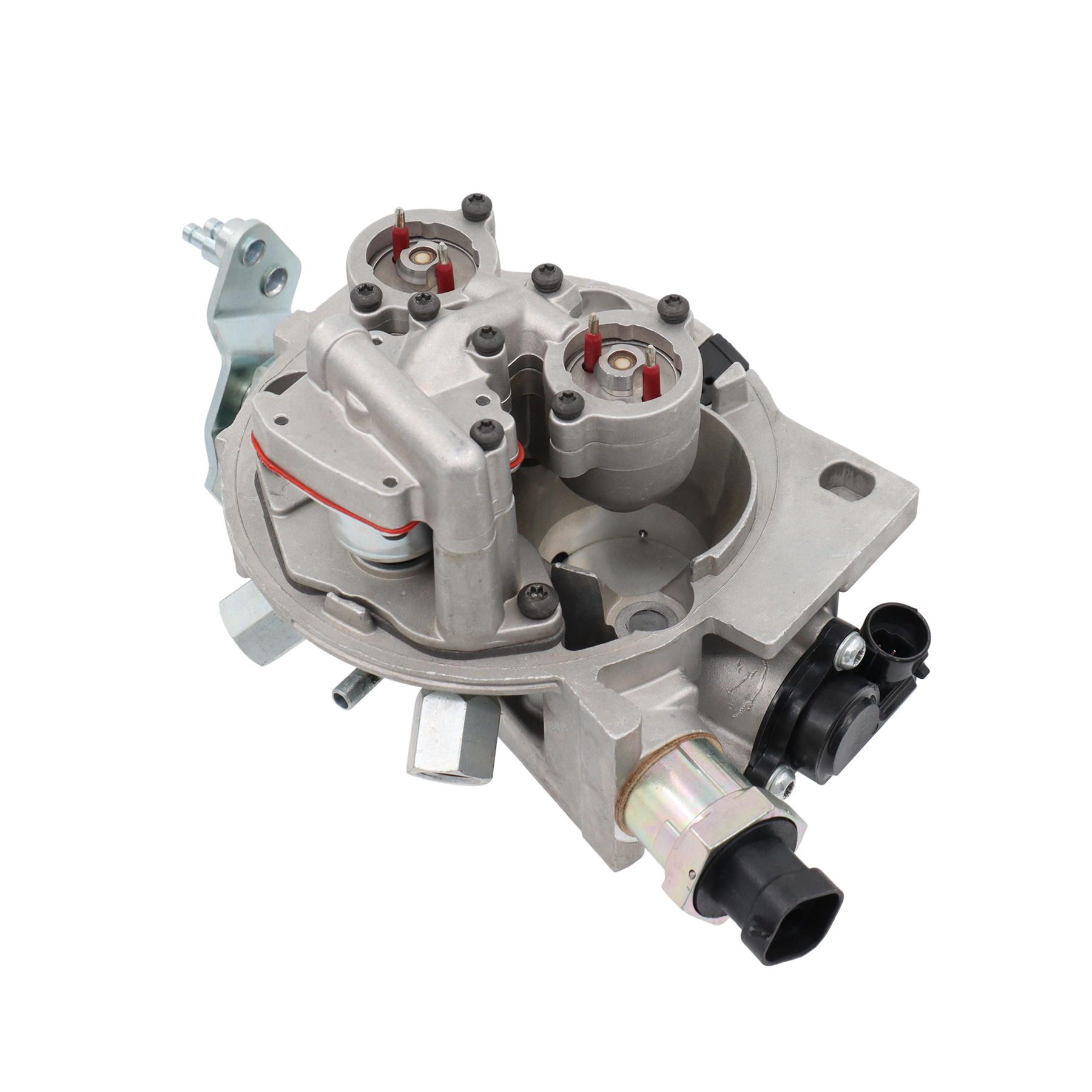

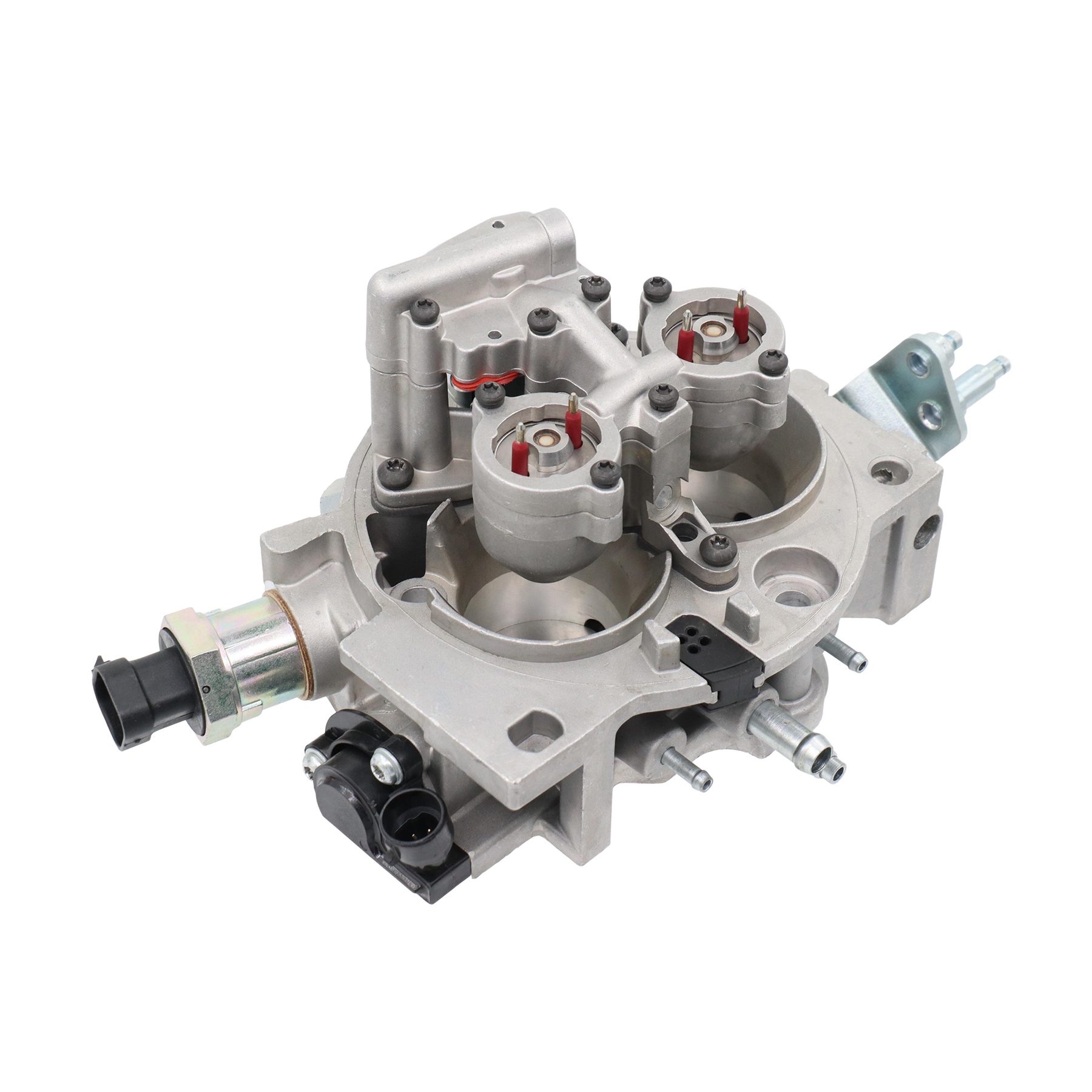

- Eight detailed product and exploded-assembly images for comparison
Important Fitment Notice
This product is configured around reference 17093030 for 5.7L applications. Reference 17091058 is generally associated with 5.0L calibration and is not presented here as a direct interchange. Before ordering, compare the original number, injector flow calibration, electrical connectors, fuel ports, throttle linkage, bore and mounting pattern with the photographs. Professional installation is recommended.
